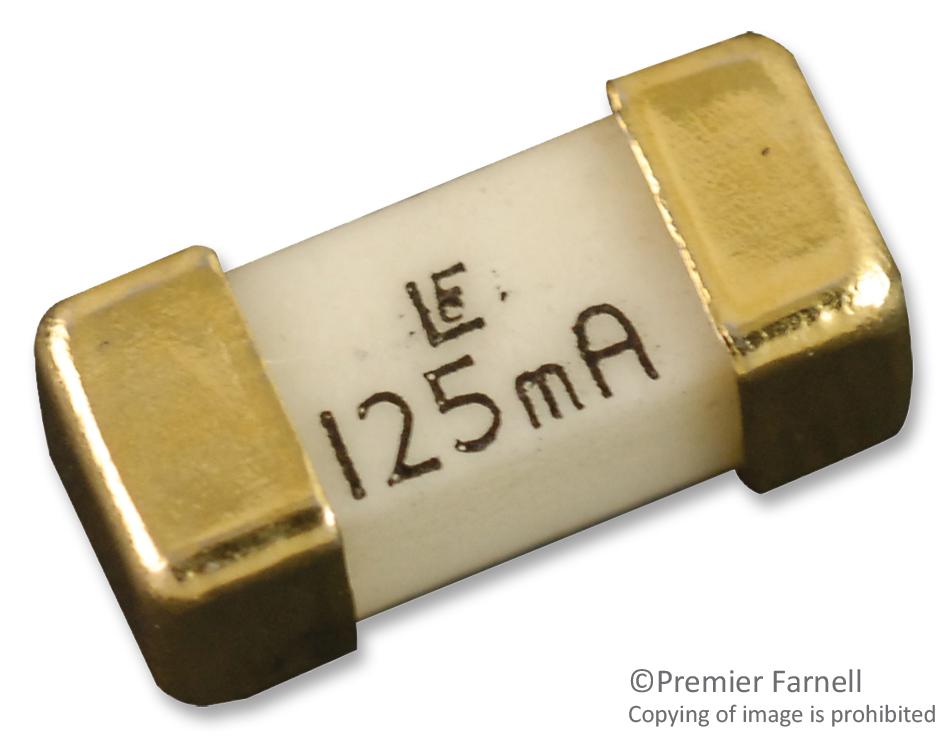

Littelfuse 0451125MRL Nano Surface Mount Fuse
The LITTELFUSE Nano[2] SMF Fuse is a compact, surface mount fuse designed for applications where space is limited. It offers fast-acting protection and is available in RoHS compliant versions (suffix ‘L’). The fuse is suitable for a wide range of electronic devices and circuits requiring overcurrent protection. It is recognized under Underwriters Laboratories and certified by CSA, ensuring reliable performance and safety.
Littelfuse 0451125MRL Nano Surface Mount Fuse Specifications:
- Operating Temperature: –55°C to 125°C
- Shock: MIL-STD-202, Method 213
- Vibration: MIL-STD-202, Method 201
- Salt Spray: MIL-STD-202, Method 101
- Insulation Resistance: MIL-STD-202, Method 302
- Resistance to Soldering Heat: MIL-STD-202, Method 210
- Thermal Shock: MIL-STD-202, Method 107
- Moisture Resistance: MIL-STD-202, Method 106
- Materials Body: Ceramic
- Materials Terminations: Tin-Lead Alloy
- RoHS Compliant Terminations: Gold over Nickel Plated Caps(451) Silver Plated Caps(453)
- Wave Solder: 260°C, 10 seconds maximum
- Reflow Solder: 260°C, 30 seconds maximum
- Solderability: MIL-STD-202, Method 208
- Interrupting Ratings 1/16 – 8A: 50 amperes at 125 VAC/VDC
- Interrupting Ratings 10A: 35 amperes at 125 VAC/50 amperes at 125 VDC
- Interrupting Ratings 12A – 15A: 50 amperes at 65 VAC/VDC
Buy the 0451.125MRL LITTELFUSE Nano Surface Mount Fuse | myMectronic
Purchase the LITTELFUSE 0451.125MRL Nano Surface Mount Fuse securely online and ensure reliable overcurrent protection for your critical applications.
