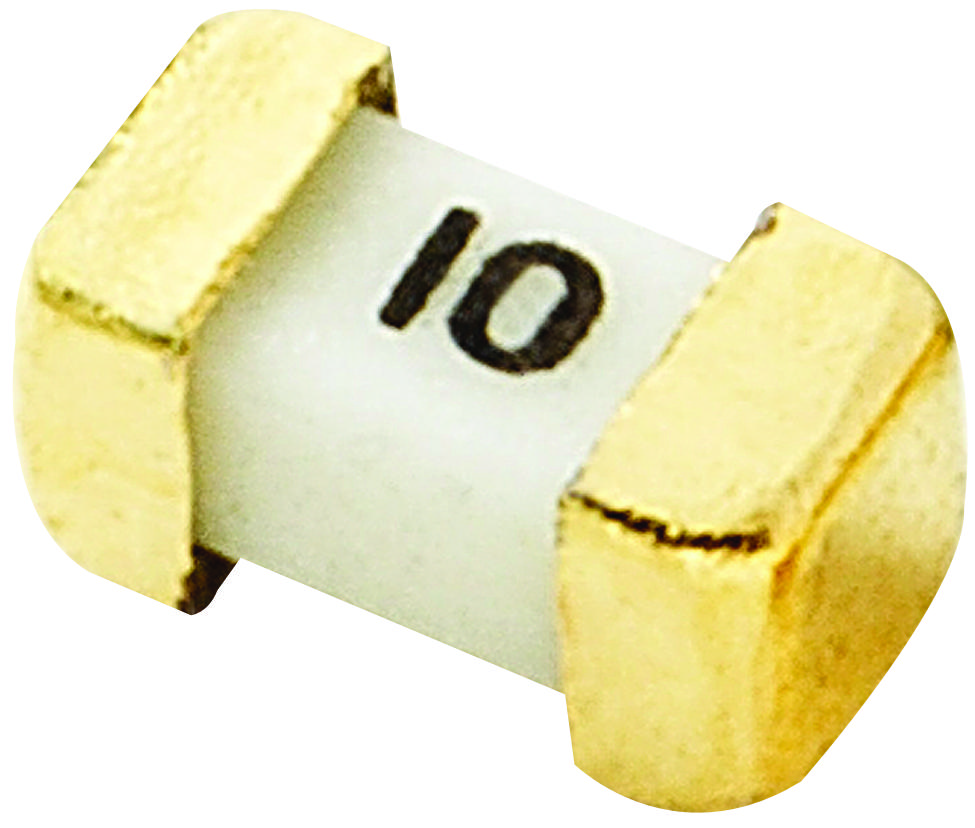

Littelfuse 0458063DR Surface Mount Fuse
The 458 Series Nano*® Fuse is an ultra-small, surface mount fuse with a 1206 size footprint, supporting space-constrained overcurrent protection. It withstands inrush currents up to 10A withstanding inrush, ideal for electronic applications like notebook PCs, telecom equipment, and LCD backlight inverters. Compliant with RoHS and halogen-free soldering standards, it features ratings from 1 to 10 Amperes, with detailed electrical characteristics and temperature ratings from -55°C to 125°C. Perfect for supporting high-density electronic assemblies requiring reliable overcurrent protection.
Littelfuse 0458063DR Surface Mount Fuse Specifications:
- Size: 1206 footprint
- Current Ratings: 1A to 10A
- Voltage: 63Vdc
- Operating Temperature: -55°C to 125°C with derating
- Body Material: Ceramic with gold-plated brass cap
- Certifications: RoHS, Halogen Free, compliant with industry standards
- Soldering: Reflow with Pb-free process, maximum peak temperature 250°C
- Vibration Resistance: MIL-STD-202, Method 2014
- Shock Resistance: MIL-STD-202F, Method 213
- Insulation Resistance: ≥10,000 ohms at 25°C
- Durability: Thermal Shock tested (5 cycles -65°C to +125°C)
- Humidity Resistance: 90-98% RH at 65°C
- Solderability: MIL-STD-202 Method 208
- Salt Spray Resistance: MIL-STD-202 Method 1010
Buy the Littelfuse 0458063DR – Reliable Surface Mount Fuse for Industrial Applications
Secure your electronic designs with the Littelfuse Surface Mount Fuse, Part Number 0458063DR. Featuring ultra-small 1206 size, it supports 1-10A inrush withstand, RoHS compliance, and halogen-free soldering. Ideal for densely packed electronic devices such as PCs, telecom, and LCD backlights, this fuse ensures reliable overcurrent protection under demanding conditions. Its ceramic body and gold-plated brass cap provide excellent durability. Easy to solder with lead-free reflow processes, enhancing your manufacturing efficiency and product safety for industrial and consumer electronics.
Buy Littelfuse 0458063DR now and experience unmatched reliability and high-density overcurrent protection in your electronic systems.
Frequently Asked Questions
Where can I buy Littelfuse 0458063DR?
You can click on the BUY or RFQ button to purchase 0458063DR from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0458063DR?
You can download the 0458063DR datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0458063DR?
Littelfuse
