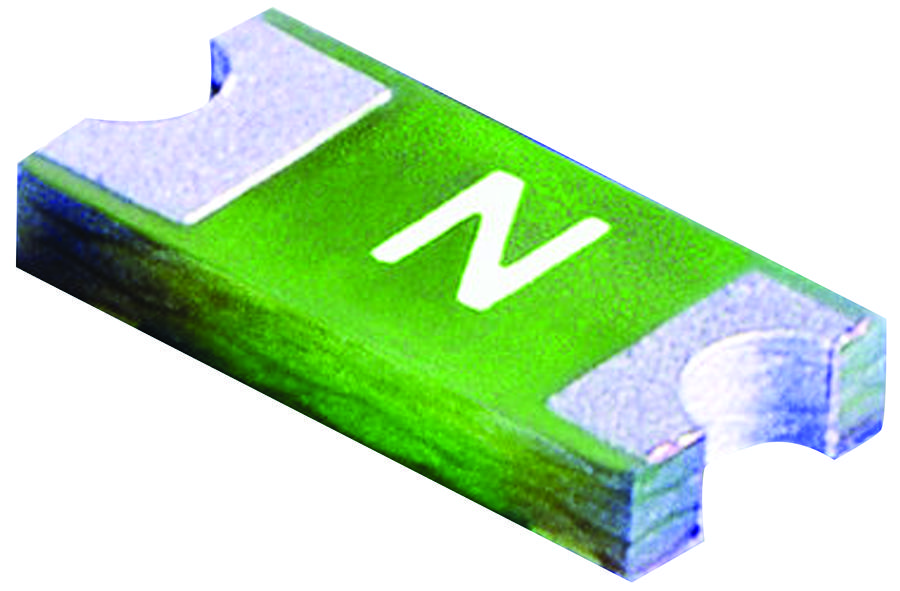

Littelfuse 0466002NRHF 1206 Fast-Acting Fuse
The Littelfuse 466 Series Fast-Acting Surface Mount Fuse (SMF) is a compact, thin-film device ideal for protecting circuits in space-constrained applications such as portable electronic devices, cell phones, DVD players, battery packs, and hard disk drives. This series is 100% lead-free and meets RoHS requirements, with halogen-free options available. The fuse features an alloy-based element cover coating for superior inrush withstand characteristics and identification. Its low profile and flat top surface are optimized for pick-and-place operations. It is compatible with lead-free solders and designed to withstand industry standard cleaning profiles.
Littelfuse 0466002NRHF 1206 Fast-Acting Fuse Specifications:
- Agency Approvals: E10480 (.125A - 5A), 29862 (.125A - 5A)
- Operating Temperature: -55°C to 90°C
- Thermal Shock: Withstands 5 cycles of –55°C to 125°C
- Humidity: MIL-STD-202, Method 103, Condition D
- Vibration: MIL-STD-202, Method 201
- Insulation Resistance: Greater than 10,000 ohms
- Resistance to Soldering Heat: MIL-STD-202, Method 210, Condition D
- Materials Body: Advanced High Temperature Substrate
- Materials Terminations: 100% Tin over Nickel over Copper
- Element Cover Coat: Conformal Coating
- Interrupting Rating: See Electrical Specifications table
- Nominal Voltage Rating: See Electrical Specifications table
- Resistance: See Electrical Specifications table
- Melting Time: See Electrical Specifications table
- Voltage Drop: See Electrical Specifications table
- Power Dissipation: See Electrical Specifications table
- Marking Code: Refer to Part Marking System table
Buy the 0466002.NRHF LITTELFUSE 1206 Fast-Acting Fuse | myMectronic
Purchase the Littelfuse 0466002.NRHF 1206 Fast-Acting Fuse securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0466002NRHF?
You can click on the BUY or RFQ button to purchase 0466002NRHF from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0466002NRHF?
You can download the 0466002NRHF datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0466002NRHF?
Littelfuse
