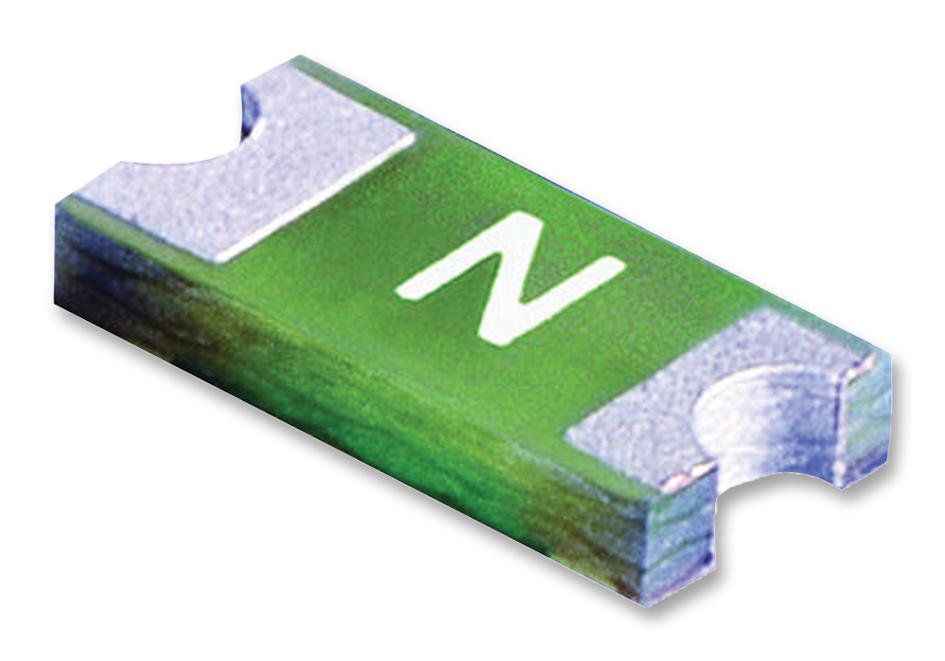

Littelfuse 0466175NR Fast-Acting Surface Mount Fuse
The Littelfuse 466 Series Fast-Acting Surface Mount Fuse (SMF) is a compact (1206 size) thin-film device engineered for secondary circuit protection in applications where space is limited, such as hand-held portable electronic devices. This series is 100% lead-free and compliant with the RoHS directive, offering an environmentally conscious solution. Halogen-free versions are also available. The fuse features an alloy-based element, a low profile for superior inrush withstand, and a flat top surface for easy pick-and-place operations. It's ideal for protecting sensitive circuits and is compatible with lead-free solders, ensuring reliability in modern electronic assemblies.
Littelfuse 0466175NR Fast-Acting Surface Mount Fuse Specifications:
- Body: Advanced High Temperature Substrate
- Terminations: 100% Tin over Nickel over Copper
- Element Cover Coat: Conformal Coating (0.026" ± 0.005")
- Operating Temperature: – 55 [O] C to 90 [O] C
- Thermal Shock: Withstands 5 cycles of –55 [O] C to 125 [O] C
- Humidity: MIL-STD-202F, Method 103B, Condition D
- Insulation Resistance: Greater than 10,000 ohms (After Opening)
- Resistance to Vibration: Per MIL-STD-202F, Method 201A, Condition D
- Nominal Voltage Rating: 125V
- Max Interrupting Rating: 5A
- Opening Time at 25 [O] C (100%): 4 hours
- Opening Time at 25 [O] C (200%): 5 seconds
- Opening Time at 25 [O] C (300%): 0.2 seconds
- Ampere Range: 125mA - 5A
Buy the 04661.75NR Littelfuse Fast-Acting Surface Mount Fuse | myMectronic
Purchase the Littelfuse 04661.75NR fuse securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0466175NR?
You can click on the BUY or RFQ button to purchase 0466175NR from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0466175NR?
You can download the 0466175NR datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0466175NR?
Littelfuse
