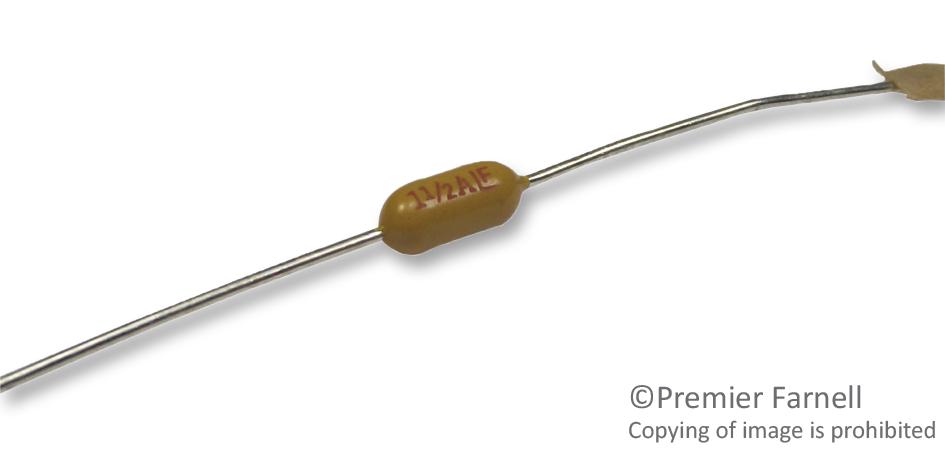

Littelfuse 0473001HAT1L Slo-Blo Fuse
The Littelfuse 473 Series PICO II Slo-Blo fuse is a time-delay fuse engineered for reliable performance in a compact size. It combines the benefits of time-delay characteristics with the proven reliability of Littelfuse's PICO fuses. This fuse is suitable for a wide range of applications, including flat-panel display TVs, medical equipment, LCD monitors, industrial equipment, and lighting systems. It features enhanced inrush withstand, is halogen-free and RoHS compliant, and operates effectively across a wide temperature range. The fuse is available in various current ratings and packaging options to meet diverse application needs.
Littelfuse 0473001HAT1L Slo-Blo Fuse Specifications:
- Ampere Range: 0.375A - 7A
- Opening Time (100% Rating): 4 Hours (Min.)
- Opening Time (200% Rating): 1 Sec. (Min.); 60 Sec. (Max.)
- Opening Time (300% Rating): 0.2 Sec. (Min.); 3 Sec. (Max.)
- Opening Time (800% Rating): 0.02 Sec. (Min.); 0.1 Sec. (Max.)
- Operating Temperature: –55ºC to +125ºC
- Lead Pull Force: 7 lbs (axial pull test)
- Insulation Resistance: 10,000 ohms minimum at 100 volts
- Resistance to Soldering Heat: 20 sec at 260ºC
- Thermal Shock: –65ºC to 125ºC
- Moisture Resistance: 90–98% RH, 65ºC
- Agency Approvals: E10480, 29862, PSE
- Materials: Solder Coated Copper wire leads
- Encapsulated Body: Epoxy-Coated
- Standards Compliance: MIL-STD-202
- Packaging Options: Reel, Ammo Pack, Loose Pack
- T1 Dimension: 52.4mm (2.062")
- Full Component Length: 62.7mm (2.468")
Buy the 0473001.HAT1L LITTELFUSE Slo-Blo Fuse | myMectronic
Purchase the LITTELFUSE 0473001.HAT1L Slo-Blo Fuse securely and efficiently for your industrial needs.
