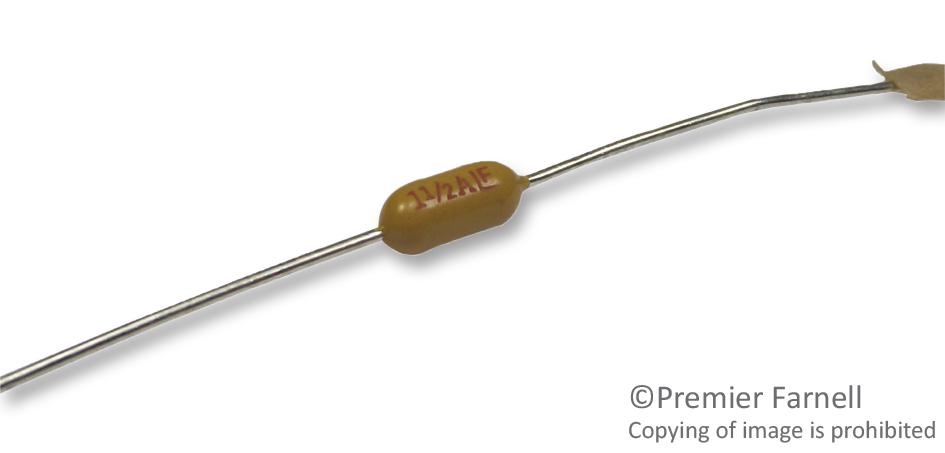

Littelfuse 0473500HAT1L Slo-Blo Fuse
The Littelfuse 473 Series PICO II Slo-Blo fuse is designed to provide time-delay performance while maintaining the reliability of a PICO fuse. This fuse is ideal for applications requiring a balance of fast response and protection against temporary overloads. It is halogen-free, RoHS compliant, and features an epoxy-coated body for enhanced durability. The fuse is suitable for flat-panel displays, medical equipment, LCD monitors, industrial equipment, and lighting systems.
Littelfuse 0473500HAT1L Slo-Blo Fuse Specifications:
- Agency Approvals: E10480 (0.375A - 7A), 29862 (0.375A - 7A), PSE_NBK200416-JP1021 (1A - 5A)
- Ampere Range: 0.375A - 7A
- Opening Time (100% Rating): 4 Hours (Min.)
- Opening Time (200% Rating): 1 Sec. (Min.); 60 Sec. (Max.)
- Opening Time (300% Rating): 0.2 Sec. (Min.); 3 Sec. (Max.)
- Opening Time (800% Rating): 0.02 Sec. (Min.); 0.1 Sec. (Max.)
- Max Voltage: 125V
- Interrupting Rating: Varies by Ampere Rating (see table)
- Resistance: Varies by Ampere Rating (see table)
- Operating Temperature: -55ºC to +125ºC
- Materials: Solder Coated Copper wire leads
- Lead Pull Force: 7 lbs (Min.)
- Solderability: MIL-STD-202, Method 208
- Vibration: MIL-STD-202, Method 204
- Salt Spray: MIL-STD-202, Method 101
- Insulation Resistance: 10,000 ohms minimum at 100 volts
- Resistance to Soldering Heat: MIL-STD-202, Method 210
- Thermal Shock: MIL-STD-202, Method 107
- Moisture Resistance: MIL-STD-202, Method 106
- Dimensions (Length): 62.7 mm (2.468")
- T1 Dimension: 52.4 mm (2.062")
- Packaging Options: Reel, Ammo Pack, Loose Pack
- Lead Length: T1: 52.4mm (2.062")
Buy the 0473.500HAT1L Littelfuse Slo-Blo Fuse | myMectronic
Purchase the Littelfuse 0473.500HAT1L Slo-Blo Fuse securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0473500HAT1L?
You can click on the BUY or RFQ button to purchase 0473500HAT1L from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0473500HAT1L?
You can download the 0473500HAT1L datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0473500HAT1L?
Littelfuse
