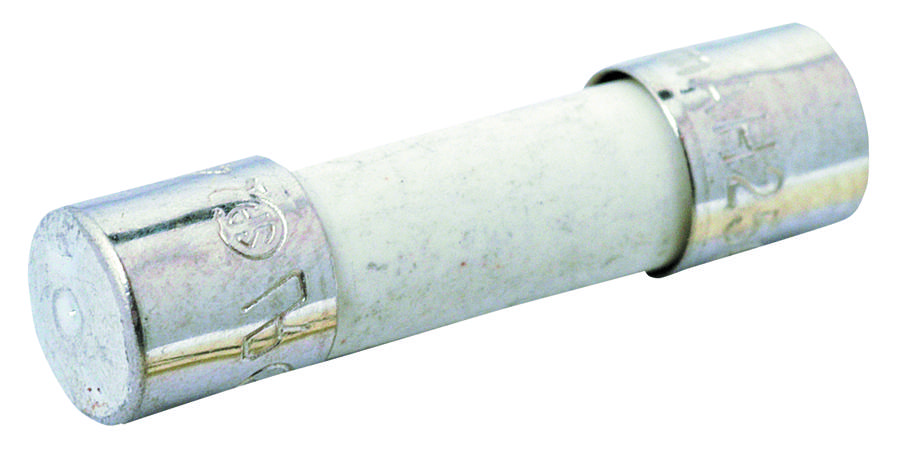

Littelfuse 0477001MXP Time-Lag Ceramic Fuse
The LITTELFUSE 0477001.MXP is a 5x20mm time-lag cartridge fuse designed for global use. This fuse features a surge withstand ceramic body and is rated for 400Vdc/500Vac. It is RoHS compliant and follows IEC 60127-2 Sheet 5 specifications. Applications include high energy and power efficient systems, and it is available in both axial lead and cartridge form. The fuse is designed for reliable overcurrent protection in a variety of electrical circuits.
Littelfuse 0477001MXP Time-Lag Ceramic Fuse Specifications:
- Voltage Rating: 400Vdc/500Vac
- Size: 5x20mm
- Fuse Type: Time-Lag
- Body Material: Ceramic
- Cap Material: Nickel-plated Brass
- Lead Material: Tin-plated Copper
- Operating Temperature: -55ºC to +125ºC
- RoHS Compliant: Yes
- Agency Approvals: NBK040609-JP1021A (1A – 5A), NBK040609-JP1021C (6.3A – 12A), NBK100408-JP1021A (16A)
- Interrupting Rating: 100A@500VAC, 1500A@400VDC
- Cold Resistance: 0.300 to 509.000 Milli-ohms (depending on amperage)
- Opening Time: 60 minutes (minimum for lower amperage), 30 minutes (minimum for higher amperage), .005 to 80 seconds (maximum)
- Packaging: Bulk (1000 pcs/pkg), Reel and Tape (1000 pcs/pkg)
