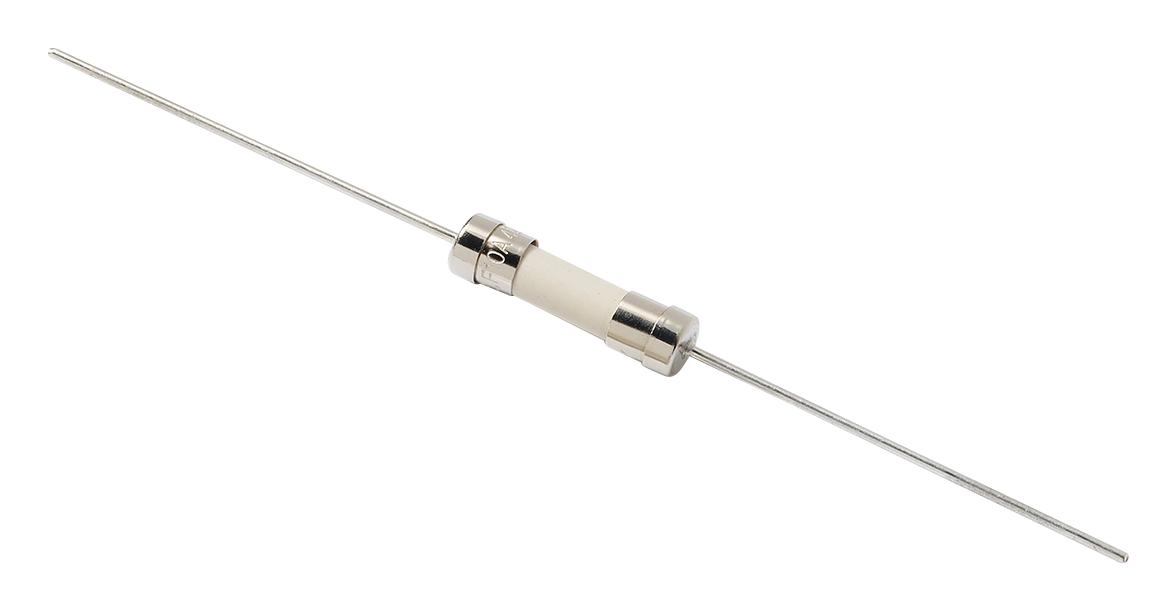

Littelfuse 0487010MXEP Fast-Acting Ceramic Fuse
The 487 Series is a 5x20 mm fast-acting ceramic fuse designed for high energy applications such as 3-phase power supplies, inverters, and data center DC power grids. Rated for 420VAC and 420VDC, it provides rapid circuit protection during short-circuit or overcurrent faults, removing problematic power supplies quickly and preventing system shutdowns. Suitable for telecom and data center environments, this RoHS-compliant, lead-free fuse features high current ratings from 8A to 20A, with fast tripping times between 0.01 to 0.03 seconds. Its ceramic body and nickel-plated brass caps ensure durability and reliability in demanding conditions.
Littelfuse 0487010MXEP Fast-Acting Ceramic Fuse Specifications:
- Body Material: Ceramic
- Cap Material: Nickel-plated Brass
- Lead Material: Tin-plated Copper
- Dimensions: 5x20 mm
- Voltage Rating: 420VAC, 420VDC
- Current Ratings: 8A to 20A
- Response Time: 0.01 to 0.03 seconds
- Operating Temperature: -55°C to +125°C
- Thermal Shock Resistance: MILSTD-202, Method 201
- Soldering Temperature: Max 260°C for 2-5 seconds
- RoHS Compliant: Yes
- Agency Approvals: Multiple including UL recognition
- Material Durability: High energy and power efficiency
- Certifications: RoHS, Lead-Free
- Reliability: Designed for rapid fault clearing to protect critical systems
Buy the Buy Littelfuse 487 Series Part Number 0487010MXEP Online
Purchase the Littelfuse 487 Series fast-acting ceramic fuse online today to ensure rapid circuit protection in power supplies, data centers, and telecom systems. With a 5x20mm footprint, rated 420VAC and 420VDC, and current ratings from 8A to 20A, this fuse provides quick fault clearing times between 0.01 to 0.03 seconds, safeguarding sensitive equipment effectively. Its ceramic body and nickel-plated brass caps guarantee durability, while RoHS compliance ensures environmental safety. Trusted by engineers for reliability in demanding high-energy applications, making it vital for maintaining system stability and safety.
Buy Littelfuse 0487010MXEP now and experience unmatched reliability and rapid fault protection for high-energy power systems.
Frequently Asked Questions
Where can I buy Littelfuse 0487010MXEP?
You can click on the BUY or RFQ button to purchase 0487010MXEP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0487010MXEP?
You can download the 0487010MXEP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0487010MXEP?
Littelfuse
