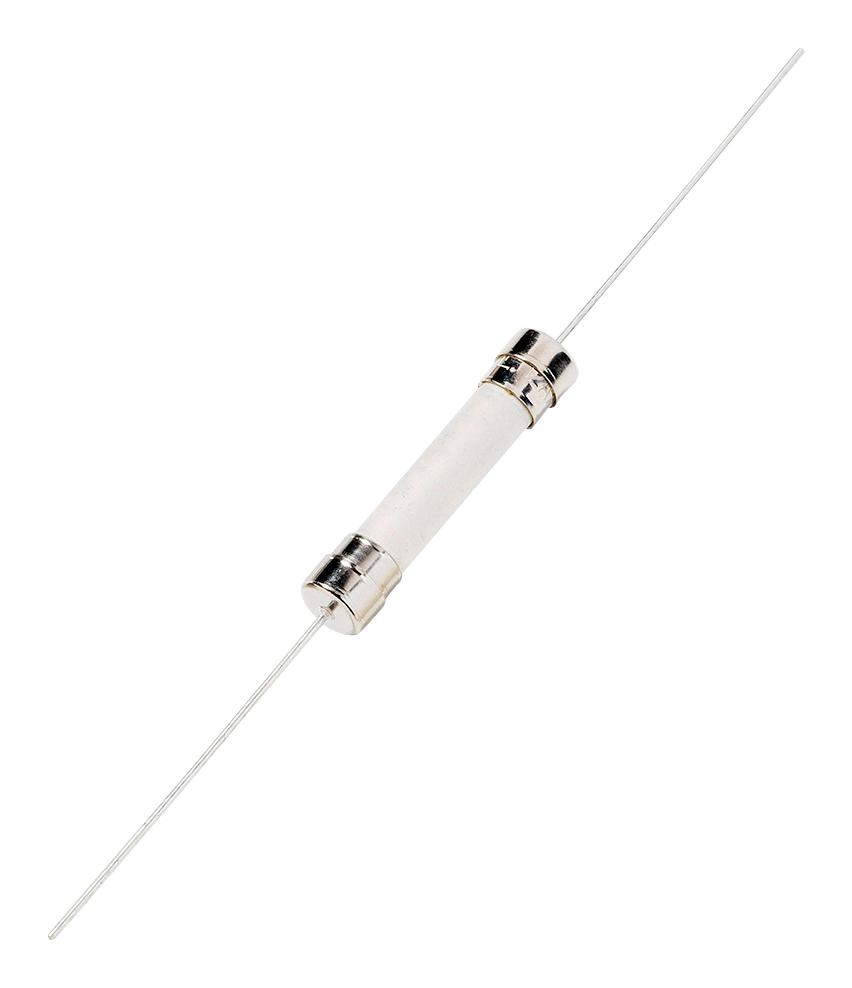

Littelfuse 0514125MXEP High Energy Ceramic Fuse
The 514 Series axial lead and cartridge fuses are fast-acting ceramic devices rated for 500VAC, suitable for high energy circuit protection. Featuring a compact 6.3 x 32mm form factor, they offer high interrupting ratings and are RoHS compliant, lead-free, and halogen-free. These fuses provide reliable performance in demanding applications such as power supplies and industrial equipment, with specifications encompassing temperature tolerance, material composition, and safety certifications ensuring optimal circuit protection and compliance for modern electrical systems.
Littelfuse 0514125MXEP High Energy Ceramic Fuse Specifications:
- Body: Ceramic
- Voltage Rating: 500VAC
- Form Factor: 6.3 x 32mm (cartridge and axial lead)
- Lead Material: Tin-coated copper
- Lead Diameter: 1.02±0.06 mm (.04 inch), 0.81±0.05 mm (.032 inch)
- Temperature Range: -65°C to +125°C
- Maximum Preheat Temperature (Wave Soldering): 150°C, 60-180 seconds
- Maximum Soldering Temperature: 260°C for 2-5 seconds
- Certification: UL Listed, RoHS compliant, Halogen free
- Interrupting Rating: Remarkable high energy ratings
- Package Quantity: 1000 pieces
- Lead-Free: Yes
- Ambiant Operating Temperature: -65°C to +125°C
Buy the Buy Littelfuse 514 Series Part Number 0514125MXEP Online
Purchase the Littelfuse 514 Series ceramic high energy fuses online to ensure your electrical circuits are protected with fast-acting, reliable, and RoHS compliant components. These compact 6.3 x 32mm fuses feature high interrupting ratings, suitable for power supplies and industrial equipment. Lead-free and halogen-free, they meet all safety standards, with easy ordering in bulk. Secure your applications with high-performance fuses designed for demanding environments, ensuring safety, durability, and compliance for your electrical systems efficiently.
Buy Littelfuse 514 Series 0514125MXEP now and experience unmatched reliability and high energy circuit protection for demanding industrial applications.
Frequently Asked Questions
Where can I buy Littelfuse 0514125MXEP?
You can click on the BUY or RFQ button to purchase 0514125MXEP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0514125MXEP?
You can download the 0514125MXEP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0514125MXEP?
Littelfuse
