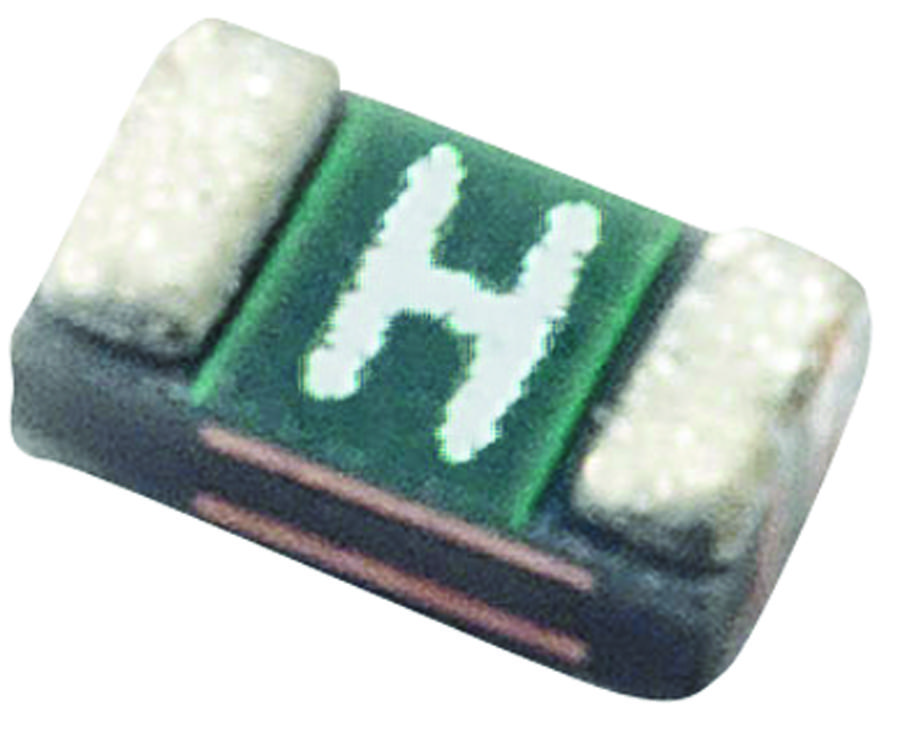

Littelfuse 0603L004YR Surface Mount Resettable PTC
The 0603L Series PTC provides surface mount, resettable overcurrent protection suitable for compact electronic devices. RoHS compliant, lead-free, halogen-free, with low resistance. It features a low-profile design, fast fault response, and high current compatibility, making it ideal for USB peripherals, PDAs, disk drives, and game consoles. Its reliability ensures protection against temporary overcurrent conditions while minimizing space in tight electronic layouts. Suitable for applications requiring quick reset after fault conditions and durable performance under thermal stress.
Littelfuse 0603L004YR Surface Mount Resettable PTC Specifications:
- Size: 0603L series, approx. 0.06 x 0.03 inches
- Hold Current: from 0.04A to 0.50A based on series version
- Maximum Voltage: V max varies by series, up to 16V
- Maximum Trip Current: from 0.12A to 1.00A depending on model
- Resistance: R a from 0.052Ω to 0.67Ω at 25°C
- Power Dissipation: varies, designed for transient fault conditions
- Lead Material: Matte Tin (Sn)
- Operating/Storage Temperature: -40°C to +85°C
- Soldering: Reflow with recommended profiles, lead-free compatible
- Environmental: Meets EIA and MIL-STD standards for reliability, moisture, vibration
- Package: Tape and Reel, 4000 units per reel, size codes 0603L004YR to 0603L050YR
Buy the Buy Littelfuse 0603L Series Resettable PTC Part Number 0603L004YR Online
Secure your electronic projects with Littelfuse 0603L Series resettable PTC fuse. This compact, RoHS compliant device provides fast overcurrent protection, ideal for USB peripherals, disk drives, and gaming consoles. Its low resistance and reliable trip response ensure device safety under transient overcurrent conditions. Reflow solderable with standard profiles, it features a robust tin-plated terminals for durable connections. Purchase online today and protect your electronics efficiently with this high-quality, space-saving resettable fuse, designed for modern compact applications.
Order your Littelfuse 0603L Series 0603L004YR resettable fuse today and ensure reliable overcurrent protection for compact electronic devices.
