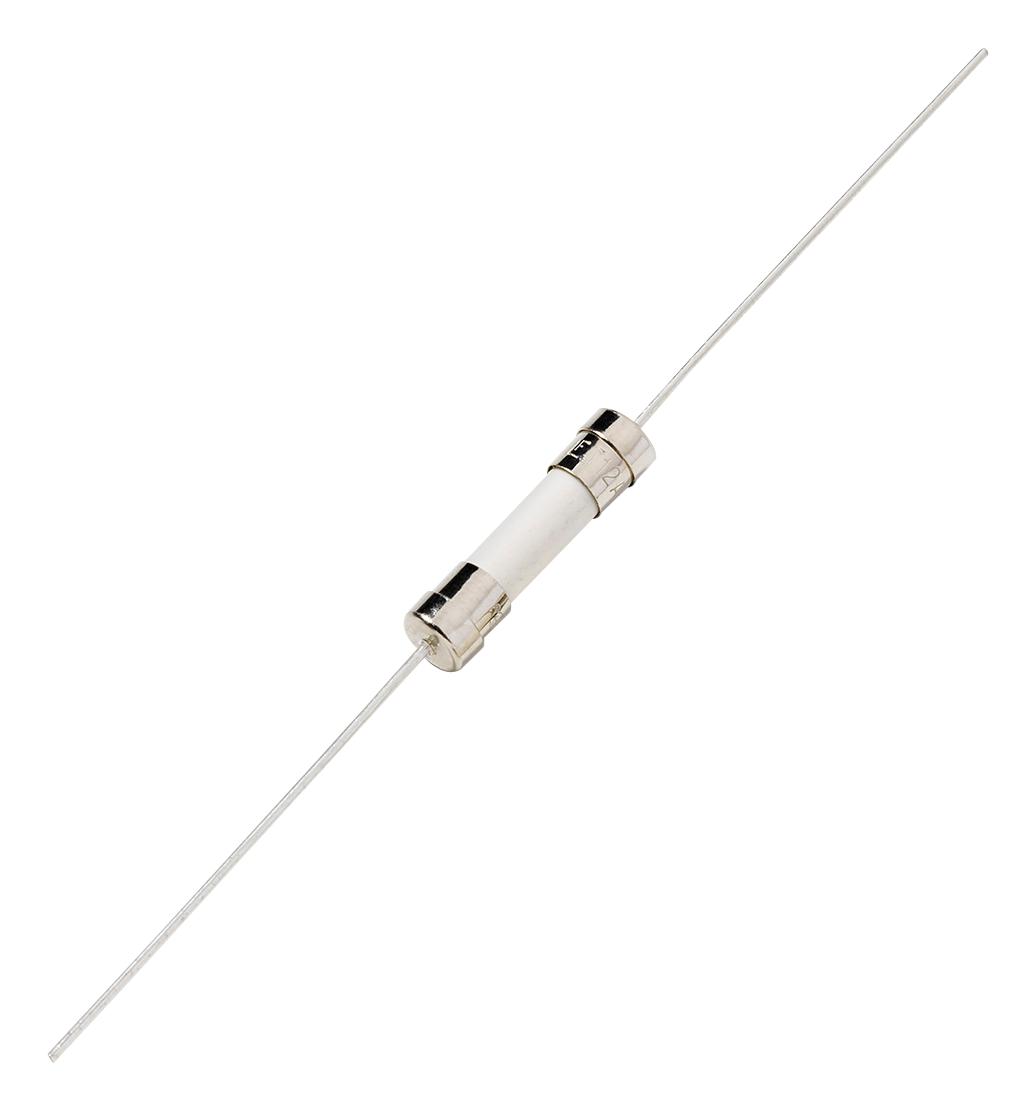

Littelfuse 0835005MXEP Time-Lag Ceramic Fuse
The LITTELFUSE 835 Series is a 5x20mm time-lag fuse designed with a ceramic body for enhanced over-current protection and surge withstand capability. This fuse features a higher I[2] t and a 1.5kA surge withstand capability, making it ideal for applications such as LED/LCD TVs, digital display systems, and digital signage. It is RoHS compliant and 100% Pb-Free, ensuring environmental responsibility. The fuse is available in bulk packaging and offers a wide range of agency approvals and electrical characteristics.
Littelfuse 0835005MXEP Time-Lag Ceramic Fuse Specifications:
- Agency Approvals: R50282025 (5A-8A), SU05001-14001 (5A-6.3A), SU05001-14002 (8A), CQC14012115993 (8A), 2014010207723515 (5A-6.3A), E10480 (5A-8A), NBK080205-E10480A (5A), NBK250702-E10480E (6.3A-8A), NBK080205-E10480B (5A), NBK250702-E10480F (6.3A-8A)
- Surge Wave Form: 8/20µs
- Short-Circuit Current: 1500A
- Number of Pulses: 12
- Ampere Rating: 5A-8A
- Transient Surge Ratings: Provided for reference only, may not represent surge withstand capability in the end application.
- IEC Standard: IEC 60060-1 (front time = 8µs, time to half-value = 20µs)
- Body Material: Ceramic
- Cap Material: Nickel-plated Brass
- Lead Material: Tin-plated Copper
- Terminal Strength: MIL-STD-202, Method 211, Test Condition A
- Solderability: IEC 60068-2-20, Method 1 (235ºC)
- Product Marking: Cap 1: Brand logo, current and voltage ratings; Cap 2: Agency approval markings
- Packaging Quantity: 1000 pieces on bulk
- Operating Temperature Range: -55°C to 125°C
- Thermal Shock: MIL-STD-202, Method 107, Test Condition B (5 cycles, –65ºC to +125ºC)
- Vibration: MIL-STD-202, Method 201
- Humidity: MIL-STD-202, Method 103, Test Condition A (95% relative humidity, 40ºC for 240 hours)
- Salt Spray: MIL-STD-202, Method 101, Test Condition B
- I[2] t Test: Tested at 10x rated current
- Nominal Cold Ampere Rating: 5A, 6.3A, 8A
- Nominal Melting Ampere Rating: 5A, 6.3A, 8A
- Agency Approval: PSE
