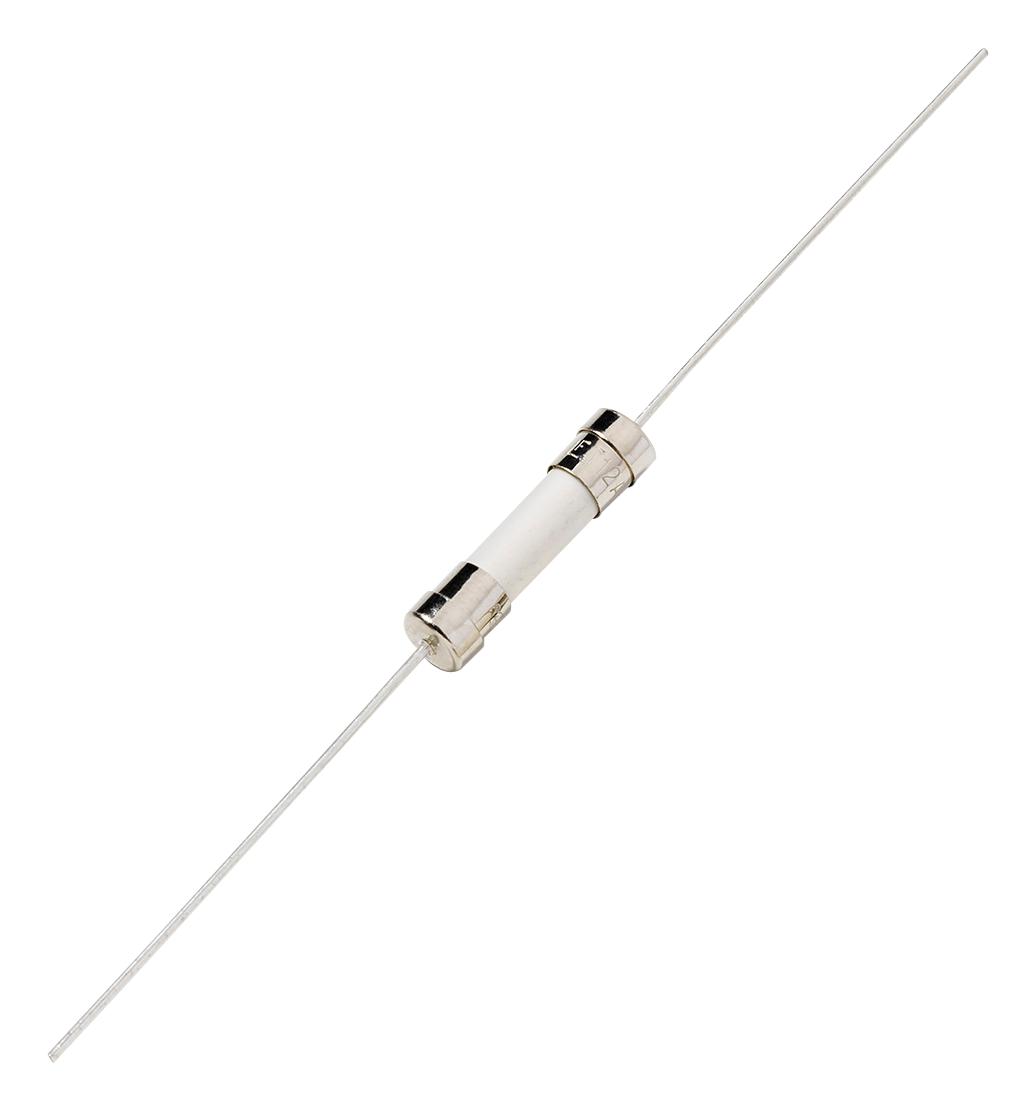

Littelfuse 0835008MXEP Time-Lag Ceramic Fuse
The Littelfuse 835 Series is a 5x20mm time-lag fuse designed with a ceramic body and nickel-plated brass cap. It features a high interrupting rating and surge withstand capability, making it ideal for over-current protection in LED/LCD TVs, digital display systems, and digital signage. This RoHS compliant fuse offers a reliable solution for various industrial applications and is available in bulk packaging options.
Littelfuse 0835008MXEP Time-Lag Ceramic Fuse Specifications:
- Body: Ceramic
- Cap: Nickel-plated Brass
- Leads: Tin-plated Copper
- Terminal Strength: MIL-STD-202, Method 211, Test Condition A
- Solderability: IEC 60068-2-20, Method 1 (235ºC)
- Product Marking: Cap 1: Brand logo, current and voltage ratings; Cap 2: Agency approval markings
- Packaging: Packed 1000 pieces on bulk
- Operating Temperature Range: -55°C to 125°C
- Transient Surge Ratings: 8/20µs, Short-Circuit Current: 1500A, Number of Pulses: 12, Ampere Rating: 5A-8A
- IEC 60060-1: Front time = 8µs, time to half-value = 20µs
- I[2] t: Tested at 10x rated current
- Ampere Rating: 5A-8A
- Opening Time: 60 minutes (minimum) at 150% rating; 30 minutes (minimum) at 210% rating
- Surge Wave Form: 8/20µs
- Agency Approvals: R50282025, SU05001-14001, SU05001-14002, CQC14012115993, E10480, NBK080205-E10480A, PS NBK250702-E10480E, NBK080205-E10480B, NBK250702-E10480F
Buy the 0835008.MXEP LITTELFUSE Time-Lag Ceramic Fuse | myMectronic
Securely purchase the LITTELFUSE 0835008.MXEP Time-Lag Ceramic Fuse online for reliable overcurrent protection.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0835008MXEP?
You can click on the BUY or RFQ button to purchase 0835008MXEP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0835008MXEP?
You can download the 0835008MXEP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0835008MXEP?
Littelfuse
