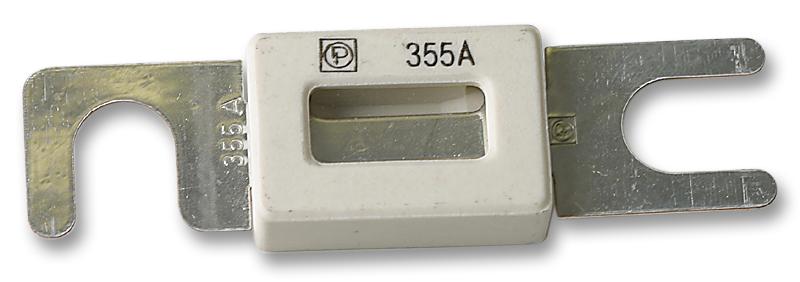

Littelfuse 15757016351 Housed Fuse Strip
Littelfuse's 157.5701.6351 housed fuse strip provides robust current protection for battery-powered vehicles and other specialized applications. Rated for 48VDC and up to 355A, this fuse strip incorporates a window for visual inspection of the melting element, allowing for quick and easy determination of fuse status. Constructed with a combination of zinc-alloy and copper, it offers a balance of strength and conductivity. It is not intended for automotive or truck applications and complies with UL 248 standards. Ensure reliable power management with Littelfuse’s quality fuse strips.
Littelfuse 15757016351 Housed Fuse Strip Specifications:
- Voltage Rating: 48 VDC
- Interrupt Ratings: up to 3000A
- Operating Temperature Range: -40° to 125°C
- Metal Parts: 35A - 80A: Zinc-alloy, 100A - 500A: Copper
- Complies with: UL 248
- cULus Recognized: File No. E211637
- Material Thickness (S): 0.6 - 1.0 mm
- Typical Voltage Drop: 125 mV
- Breaking Capacity: 48/210 - 48/3000 VDC/A
- Pre-Arcing Time-Limits: See datasheet for details
- Max Operating Current: 1.0 x Irat at 23°C
Buy the 157.5701.6351 Littelfuse Housed Fuse Strip | myMectronic
Purchase the Littelfuse 157.5701.6351 fuse strip securely and efficiently through our online platform.
