Littelfuse 15KE24A Transient Voltage Suppressor Diodes
The 1.5KE Series transient voltage suppression diodes are axial leaded, designed to protect sensitive electronic components from voltage transients caused by lightning and other events. These devices feature a peak pulse power of 1500W at 10/1000us waveform, fast response time less than 1.0ps, and excellent clamping capability. They are glass passivated in DO-201 package, RoHS compliant, halogen free, and suitable for telecommunications, industrial, and consumer electronic applications. Their low leakage current and high temperature reflow tolerance enhance durability and reliability.
Littelfuse 15KE24A Transient Voltage Suppressor Diodes Specifications:
- Peak Pulse Power Dissipation: 1500W at 10/1000us waveform
- V, Stand-off Voltage: specified per model
- V, Breakdown Voltage: specified per model
- V, Clamping Voltage: measured at peak impulse current
- I, Reverse Leakage Current: at specified V,
- Forward Voltage Drop (Uni-directional): 3.5/5.0 V
- Temperature Range: -55°C to +175°C
- Glass passivated chip junction in DO-201 package
- Lead-free reflow capable at 260°C for 40 seconds
- Matte tin, lead-free plated, RoHS compliant
- Dimensions in accordance with JEDEC standards, 0.375 inch lead length
- Polarity: Cathode band indicates cathode terminal
- Agency Approvals: UL certified, IEC-61000-4-2 ESD 30kV

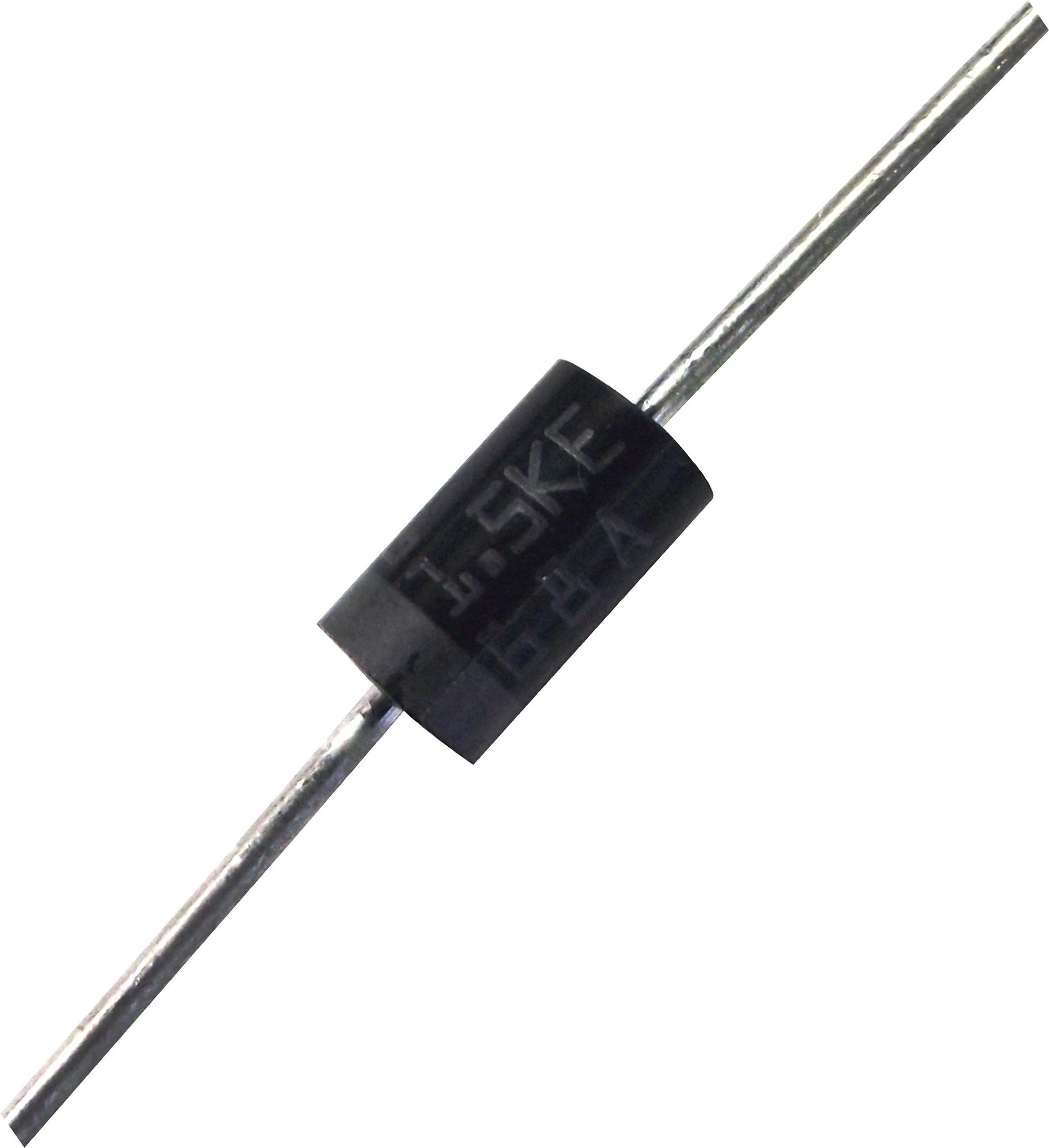

Buy the Buy Littelfuse 1.5KE24A Part Number 15KE24A Online
Secure your electronic circuits with Littelfuse 1.5KE24A transient voltage suppression diodes. These axial leaded devices provide 1500W peak pulse power, fast response time, and high reliability. Their glass passivated junction ensures excellent clamping and durability against voltage transients, making them suitable for telecom, industrial, and consumer electronics. RoHS compliant and lead-free, these diodes meet stringent environmental standards. Easy to install with a compact DO-201 package and a 0.375-inch lead length, they deliver reliable surge protection for your sensitive components. Buy online to ensure maximum electrical safety and system integrity.
Get Littelfuse 15KE24A today—robust 1500W transient suppression diodes, ideal for protecting sensitive electronic circuits from voltage surges.
Frequently Asked Questions
Where can I buy Littelfuse 15KE24A?
You can click on the BUY or RFQ button to purchase 15KE24A from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 15KE24A?
You can download the 15KE24A datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 15KE24A?
Littelfuse
