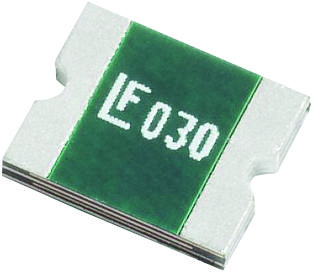

Littelfuse 2016L26024MR Overcurrent Protector
The 2016L Series PTC offers surface mount overcurrent protection for low voltage applications below 60V, ideal for IEEE 1394, powered ethernet, automotive control modules, and telecom equipment. RoHS compliant, lead-free, low-profile design provides fast fault response and high voltage handling. Suitable for protecting sensitive electronics against overcurrent conditions, these resettable devices ensure reliable performance in compact circuit designs. They meet strict environmental and manufacturing standards, delivering dependable safety and continuity in automotive, industrial, and communication systems.
Littelfuse 2016L26024MR Overcurrent Protector Specifications:
- Operating Temperature: -40°C to +85°C
- Maximum Voltage: 60V
- Hold Current: 2.60A (example for 2016L260/24)
- Resistance Range: Typical initial resistance 0.025Ω; maximum resistance measured after tripping 0.075Ω
- Physical Size: 0.20 x 0.16 inches (5.08 x 4.06 mm)
- Material: Solder plated copper terminals, matte tin coating
- Soldering Profile: peak temperature 260°C, reflow exposure 20 seconds
- Environmental: Meets MIL-STD-202, J-STD-020 Level 1 for moisture and thermal cycling
- Vibration & Shock: No change after MIL-STD-202 methods
- Reflow Soldering: recommended ramp-up and cool-down profiles for optimal attachment
- Certification: RoHS compliant, lead-free, halogen-free
Buy the Buy Littelfuse 2016L26024MR Part Number 2016L26024MR Online
Get the Littelfuse Series2016L26024MR overcurrent protection device today and secure your electronic devices from overcurrent faults. Designed for surface mount applications, it offers fast response times, high reliability, and environmental resilience, making it ideal for automotive, industrial, and communication systems. Its compact size, RoHS compliance, and robust construction ensure easy integration into your circuit boards, providing dependable overcurrent protection. Purchase online now to benefit from quick delivery and guaranteed quality assurance for your critical electronic components.
Order your Littelfuse Series2016L26024MR overcurrent protection device today and enhance the safety and reliability of your low voltage electronic circuits.
Frequently Asked Questions
Where can I buy Littelfuse 2016L26024MR?
You can click on the BUY or RFQ button to purchase 2016L26024MR from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 2016L26024MR?
You can download the 2016L26024MR datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 2016L26024MR?
Littelfuse
