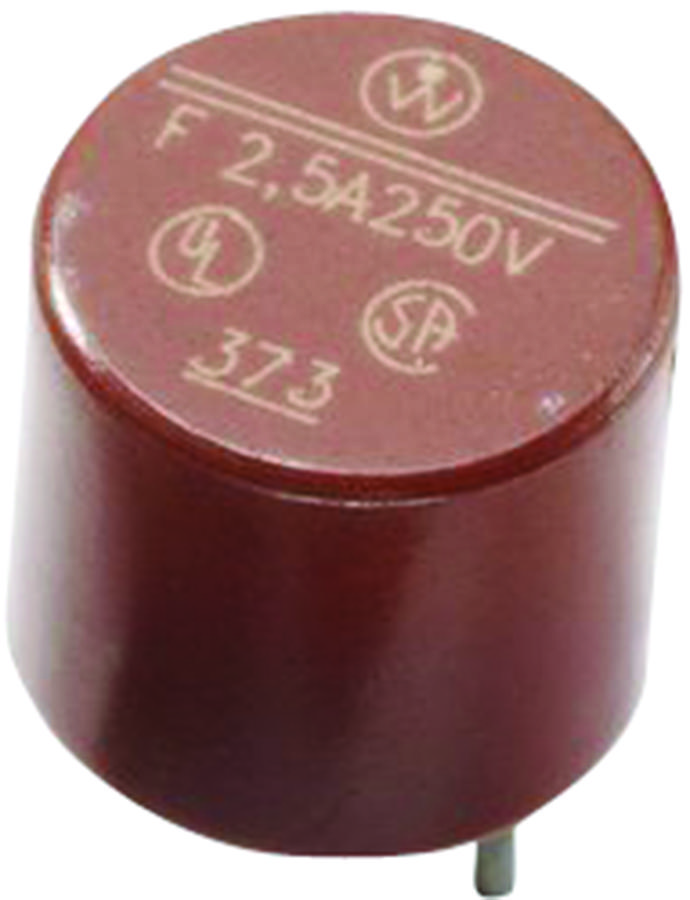

Littelfuse 37008000410 TR5 Fuse
The 370 Series TR5 Fuse is a compact, fast-acting, 250V rated fuse designed for space-saving PCB mounting and industrial applications. It complies with IEC 60127-3 standards, offering vibration resistance, low internal resistance, and a shock-safe casing. Suitable for power supplies and industrial controllers, these lead-free, halogen-free, and RoHS-compliant fuses are available in a range of current ratings from 0.040A to 6.3A. They can be directly soldered or used in plug-in configurations, ensuring reliable circuit protection in demanding environments.
Littelfuse 37008000410 TR5 Fuse Specifications:
- Rated Voltage: 250V
- Type: Fast-Acting TR5 Fuse
- Standards: IEC 60127-3
- Current Range: 0.040A to 6.3A
- Lead-Free, Halogen-Free, RoHS Compliant
- Package Options: Direct solder, plug-in
- Vibration Resistant
- Shock Safe Casing
- Temperature Range: -40°C to +85°C
- Soldering Temperature: 260°C for <3 seconds (wave), 350°C for 5 seconds (iron)
- Lead Pull Strength: 10 N
- Internal Resistance: Low
- Dimensions: Round pins, maximum lead length 8 mm, short leads 4.3 mm
- Operating Environment: Atmospheric conditions with <75% humidity, long-term storage in normal conditions
Buy the Buy Littelfuse 370 Series TR5 Fuse Part Number 37008000410 Online
Enhance your electrical projects with the reliable Littelfuse TR5 Fuse from the 370 Series, a fast-acting 250V fuse perfect for industrial controllers and power supplies. Engineered to meet IEC 60127-3 standards, these fuses feature vibration and shock resistance, low internal resistance, and RoHS compliance. Available in various current ratings from 0.040A to 6.3A, they are suitable for direct soldering or plug-in installation. Trust Littelfuse for durable, space-saving circuit protection that ensures safety and high performance in demanding environments.
Order your Littelfuse 370 Series TR5 Fuse 0.040A-6.3A today and ensure reliable circuit protection for industrial power supplies and controllers.
Frequently Asked Questions
Where can I buy Littelfuse 37008000410?
You can click on the BUY or RFQ button to purchase 37008000410 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 37008000410?
You can download the 37008000410 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 37008000410?
Littelfuse
