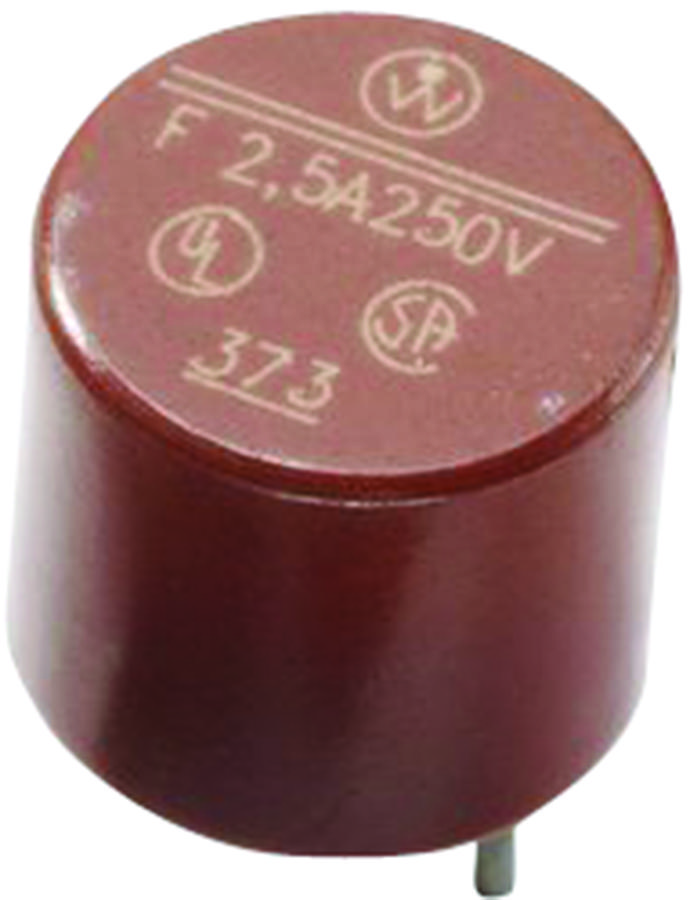

Littelfuse 37013150000 Miniature Fast-Acting Fuse
The 370 Series TR5 fast-acting fuses are ultra-miniature, 250V-rated devices designed for compact PCB spaces, vibration resistance, and compliance with IEC 60127-3 standards. Ideal for power supplies and industrial controllers, these lead-free, halogen-free, and RoHS compliant fuses feature low internal resistance and shock-safe casings. Available in solderable or plug-in variants from 0.040A to 6.3A, they offer high breaking capacity of 50A at 250V, with robust construction suitable for demanding electronic applications involving vibration and thermal stress.
Littelfuse 37013150000 Miniature Fast-Acting Fuse Specifications:
- Voltage Rating: 250V
- Current Range: 0.040A to 6.3A
- Breaking Capacity: 50A at 250V
- Certifications: IEC 60127-3, UL, RoHS compliant
- Materials: Brown thermoplastic base, copper, tin-plated pins
- Operating Temperature: -40°C to +85°C
- Soldering: 260°C for <3s (wave), 350°C for 5s (iron)
- Lead Types: Radial with short (4.3mm) or long leads, plug-in or solderable
- Dimensions: Compact size for PCB space efficiency
- Other Features: Vibration resistant, shock-safe casing, UL approved breaking capacity
Buy the Littelfuse 37013150000 – Reliable Fast-Acting Fuses for Industrial Applications
Secure your electronic designs with the Littelfuse fast-acting fuse, rated for 250V, available from 0.040A to 6.3A. These reliable, RoHS-compliant fuses are ideal for PCB compact spaces, industrial controllers, and power supplies. Featuring low internal resistance and vibration resistance, they ensure safety and durability in demanding environments. Choose from solderable and plug-in options to suit your specific needs. Maintain equipment safety with this UL-approved, shock-safe fuse designed to handle high inrush currents and thermal stresses efficiently.
Buy Littelfuse 37013150000 now and experience unmatched reliability and performance in power supply protection with these high-quality, vibration-resistant fuses.
Frequently Asked Questions
Where can I buy Littelfuse 37013150000?
You can click on the BUY or RFQ button to purchase 37013150000 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 37013150000?
You can download the 37013150000 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 37013150000?
Littelfuse
