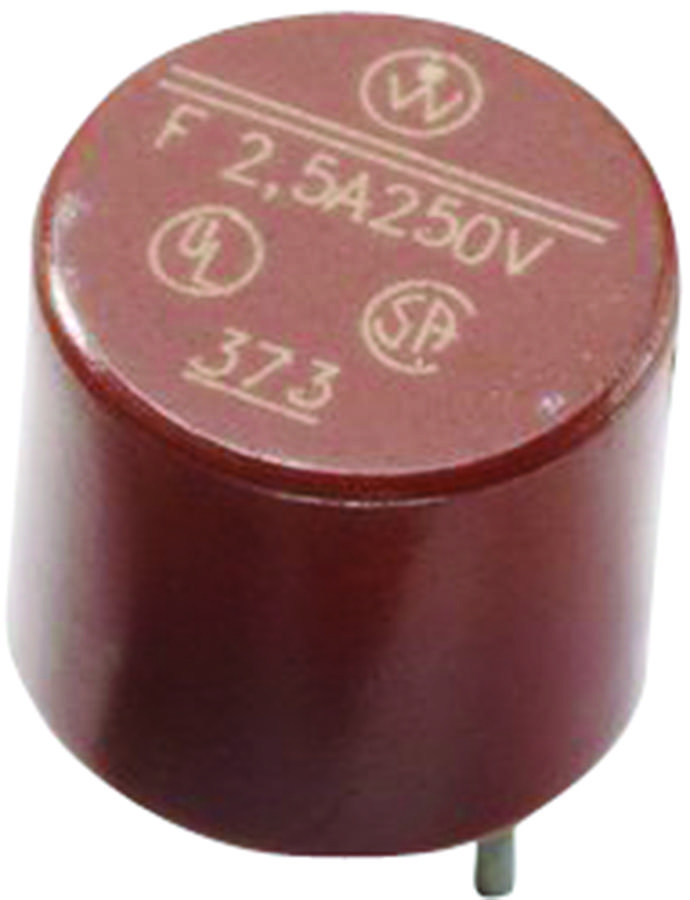

Littelfuse 38214000410 Time-Lag Fuse
The 382 Series TR5® Time-Lag Fuses are rated for 250V with an enhanced breaking capacity of 100A. Designed in accordance with IEC 60127-3, these halogen-free and RoHS compliant fuses feature low internal resistance, shock-safe casing, and a compact design ideal for PCB space-saving and vibration resistance. Available in ranges from 1A to 10A with direct solderable or plug-in options, they are suitable for battery chargers, power supplies, and electronic applications requiring reliable overcurrent protection in industrial and consumer electronics.
Littelfuse 38214000410 Time-Lag Fuse Specifications:
- Voltage Rating: 250V
- Current Range: 1A to 10A
- Breaking Capacity: 100A
- Resistance: As low as 0.0042 ohms at rated current
- Temperature Rating: -40°C to +85°C
- Materials: Base/Cap made of UL 94-0 thermoplastic, copper round pins tin-plated
- Soldering Temperature: 260°C for 2-5 seconds
- Operating Temperature: -40°C to +85°C with re-rating considerations
- Climatic Category: IEC 60068-1
Buy the Littelfuse Series TR5 382 Fuse: 38214000410
Purchase the Littelfuse 38214000410 Time-Lag Fuse online today for dependable overcurrent protection in electronic circuits. Designed with robust materials and RoHS compliance, it offers high breaking capacity, low internal resistance, and versatile mounting options including direct solder or plug-in. Ideal for battery chargers, power supplies, and industrial control systems, this fuse ensures safety and durability under various operating conditions. Order now to enhance your device’s reliability and ensure compliance with industry standards effortlessly.
Buy Littelfuse 38214000410 now and experience unmatched reliability and performance in overcurrent protection applications.
Frequently Asked Questions
Where can I buy Littelfuse 38214000410?
You can click on the BUY or RFQ button to purchase 38214000410 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 38214000410?
You can download the 38214000410 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 38214000410?
Littelfuse
