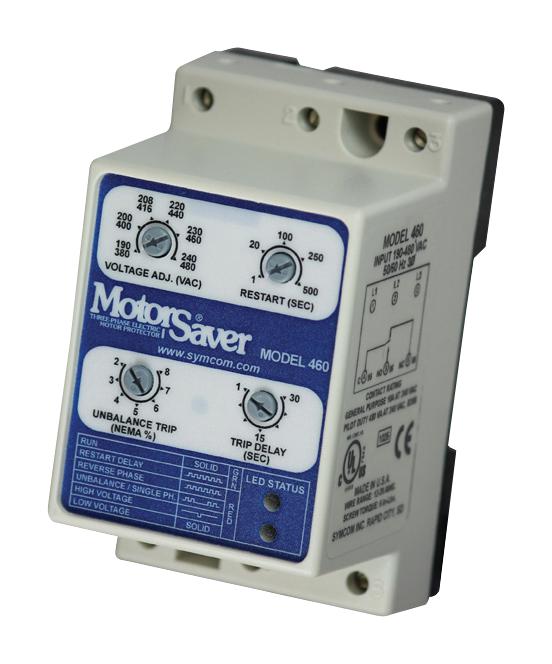

Littelfuse 460575 Voltage Monitoring Relay
The 460 series is a reliable 3-phase voltage monitor designed for protecting motors operating across 190-480VAC or 475-600VAC at 50/60Hz. It features automatic line voltage sensing, adjustable trip delays (1-30 seconds), restart delays (1-500 seconds), and a voltage unbalance trip point of 2-8%. Equipped with dual sets of contacts (Form A and B), it effectively trips under low, high, unbalanced voltages, or single-phase faults, providing enhanced motor protection. The microcontroller-based device ensures accurate monitoring, quick visual indicators, and prevents nuisance tripping with adjustable delays, making it ideal for industrial motor applications.
Littelfuse 460575 Voltage Monitoring Relay Specifications:
- Frequency: 50/60Hz
- Voltage Monitoring Range: 190-480VAC or 475-600VAC
- Low Voltage Trip: 90% of setpoint, 21% reset
- High Voltage Trip: 110% of setpoint, 1% reset
- Voltage Unbalance Trip: 2-8% adjustable, fixed at 6% UB
- Trip Delay Time: 1-30 seconds adjustable
- Restart Delay Time: 1-500 seconds adjustable
- Output Contacts: Form A & B, 10A @ 240VAC, 360VA
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -40°C to 80°C
- Power Consumption: 6W
- Protection Class: NEMA 1 (finger safe)
- Terminal Torque: 4.5 in.-lbs.
- Wire Type: Stranded or solid 12-20 AWG
- Standards: IEC 61000-4 series, UL508, IEC 60947-6-2
- Enclosure Dimensions: H 88.9 mm, W 52.9 mm, D 59.69 mm
- Mounting: 35 mm DIN rail or surface mount
- Weight: 0.7 lbs (317.5 g)
Buy the Littelfuse 460575 – Reliable Voltage Monitoring for Industrial Applications
Secure your industrial motors with the Littelfuse Voltage Monitoring Relay. Featuring adjustable trip and restart delays, dual contacts, and precise voltage and unbalance detection, it offers reliable protection against faults, voltage fluctuations, and unbalanced conditions. Easy to install and operate, this device ensures continuous motor operation and prevents damage due to power issues. Ideal for industrial, generator, and HVAC motor applications, it combines accuracy, durability, and safety compliance. Purchase online today to safeguard your equipment effectively.
Buy Littelfuse 460575 now and ensure optimal motor protection with adjustable trip delays and dual contact outputs.
