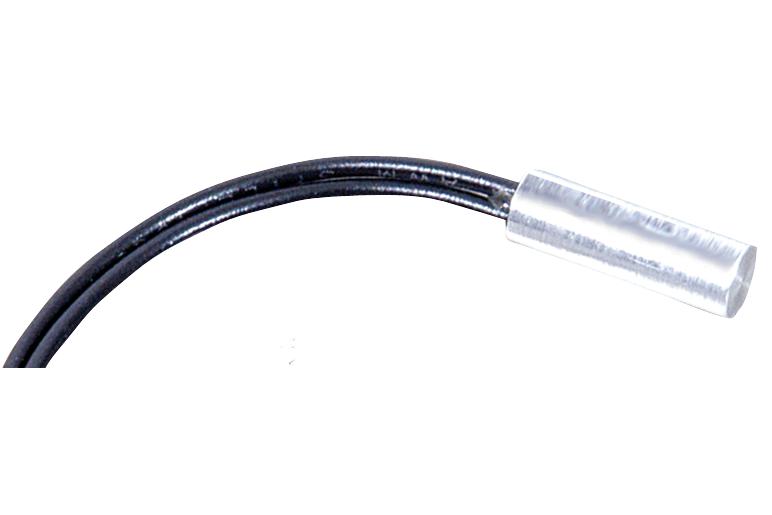

Littelfuse 590101T02F magnetic proximity sensor
This magnetic proximity sensor offers a compact 3mm diameter design with hermetically sealed contacts, ideal for position, level, and security applications. It requires no standby power and features various sensitivity, cable length, and termination options for versatile deployment. The sensor operates reliably in temperatures from -40°C to +85°C, with current capacity up to 0.35 amps and a maximum switching voltage of 175 VDC. Its robust construction ensures long-term performance in industrial environments, making it suitable for linear actuators, security, and limit sensing scenarios.
Littelfuse 590101T02F magnetic proximity sensor Specifications:
- Sensor Diameter: 3 mm
- Activation Distance: approximately 4.5 mm (0.177 inches)
- Contact Type: Single Pole Single Throw Normally Open
- Maximum Current: 0.35 amps
- Switching Voltage: Up to 175 VDC
- Temperature Range: -40°C to +85°C
- Terminations: Tinned or untinned leads
- Cable Options: 30 AWG PTFE (up to 1000 mm length)
- Vibration Resistance: 50-2000 Hz
- Shock Resistance: 150 g sine
- Reliability: Magnetically operated, hermetically sealed contacts
- Dimensions: 3 mm diameter; length varies with cable options
Buy the Buy Hamlin Sub-Miniature Firecracker Part Number 590101T02F Online
Purchase the Hamlin magnetic proximity sensor online to ensure reliable position and limit detection in industrial settings. Its compact size, hermetically sealed contacts, and adjustable sensitivity make installation easy and efficient. The sensor features a detection distance of approximately 4.5 mm, supporting multiple cable and termination options for versatility. Its robust construction withstands harsh environments, temperature extremes, and vibration, providing consistent performance. Order now to upgrade your automation system with this dependable, maintenance-free proximity sensor designed for security, level sensing, and linear actuators.
Buy Hamlin 590101T02F now and experience unmatched reliability and performance in compact magnetic proximity sensing solutions.
Frequently Asked Questions
Where can I buy Littelfuse 590101T02F?
You can click on the BUY or RFQ button to purchase 590101T02F from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 590101T02F?
You can download the 590101T02F datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 590101T02F?
Littelfuse
