Littelfuse 590221U02A Proximity Sensor

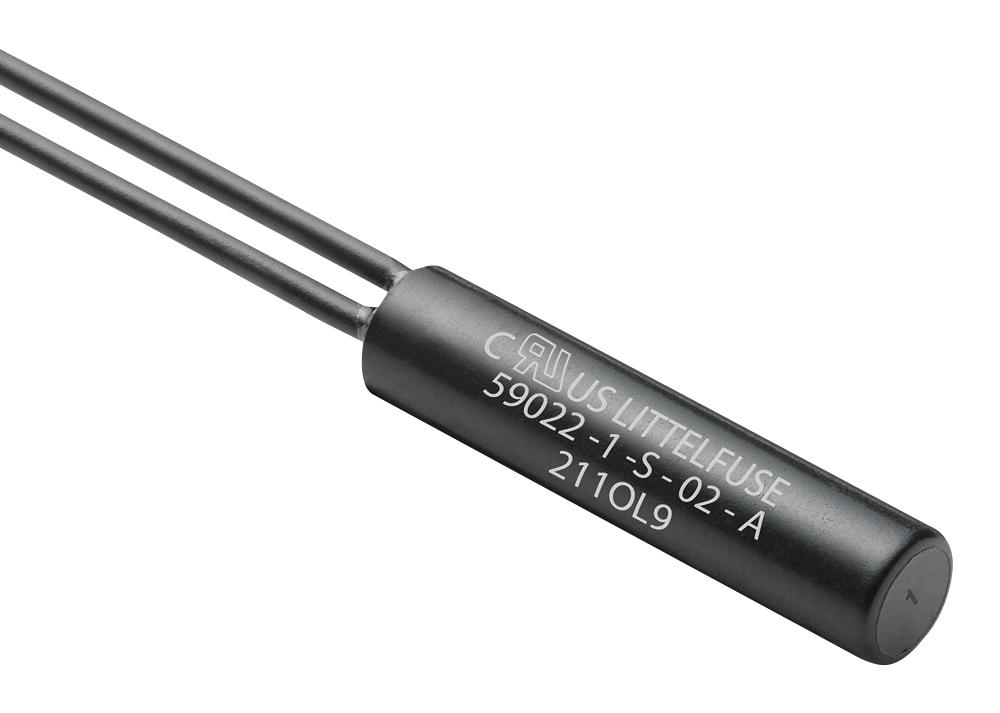

The 59022 Reed Sensor is a compact cylindrical proximity sensor measuring 25.4 mm in length and 5.80 mm in diameter. It offers normally open, normally closed, or change-over contact configurations, capable of switching up to 200 Vdc at 10 W. Designed for industrial and IoT proximity sensing, this hermetically sealed IP67 rated sensor functions effectively in wet or harsh environments, with various sensitivity and cable options available. It is ideal for security, automation, and appliance applications, providing reliable non-contact switching performance and easy installation.
Littelfuse 590221U02A Proximity Sensor Specifications:
- Dimensions: 25.4 +/-0.25 mm in length, 5.80 +/-0.25 mm in diameter
- Housing Material: PBT with 20% glass fiber
- Contact Types: Normally Open, Normally Closed, Change Over
- Contact Rating: Max 200 Vdc, 10 W; Max 175 Vac, 0.18-0.35 Aac
- Insulation Resistance: 10^10 Ω minimum
- Temperature Range: -40°C to +105°C
- Operate Time: Max 1.0 ms; Release Time: Max 1.0 ms
- Shock: Max 100 G; Vibration: Max 30 G between 50-2000 Hz
- Sealed IP67, UL Recognized, CSA Certified, REACH Compliant
- Cable Options: 24 AWG PVC, 300 or 1000 mm length; Tinned leads
Buy the Buy Littelfuse Proximity Sensor Part Number 590221U02A Online
Purchase the Littelfuse 59022 proximity sensor online today and benefit from reliable non-contact switching technology suitable for harsh environments. This compact, sealed sensor features flexible contact and sensitivity options, ensuring seamless integration into security systems, automation, and appliance controls. With easy installation and UL recognition, it offers durability and high performance in industrial and IoT applications. Improve your system's efficiency and safety by ordering the 59022 sensor online now for fast delivery and expert support.
Buy Littelfuse 59022 now and experience unmatched reliability and performance in industrial proximity sensing applications.
Frequently Asked Questions
Where can I buy Littelfuse 590221U02A?
You can click on the BUY or RFQ button to purchase 590221U02A from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 590221U02A?
You can download the 590221U02A datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 590221U02A?
Littelfuse
