Littelfuse 59025040 Proximity Sensor
This reed sensor features a single-pole, single-throw (SPST-NO) contact configuration. It is designed for reliable position and limit sensing in industrial automation, security, and level detection applications. Supporting a maximum switching voltage of 175 VDC and carrying up to 1.5 amperes, it offers a precise activation distance of 0.216 inches (5.5 mm). Terminated with leads, it ensures easy installation and long-term durability. Ideal for non-ferrous material environments, this sensor provides dependable operation even in contaminated conditions.
Littelfuse 59025040 Proximity Sensor Specifications:
- Contact Type: SPST-NO (single-pole, single-throw normally open)
- Maximum Switching Voltage: 175 VDC
- Maximum Current: 1.5 amperes
- Activation Distance: 0.216 inches (5.5 mm)
- Termination: Leads
- Support for non-ferrous materials such as wood and plastic
- Operational in environments with contamination
- Sealed magnetically operated contacts
- Application: Position, limit sensing, security, level detection
- Operating Temperature Range: -40°C to +105°C
- Durability: Long operating life with reliable switching
- Switching Power Max: 10 W
- Switching Voltage Max: 175 VDC
- Breakdown Voltage Min: 250 V
- Insulation Resistance: >10 MΩ
- Shock Resistance: 100 sine G, max
- Vibration Resistance: 30 G, 50-2000 Hz

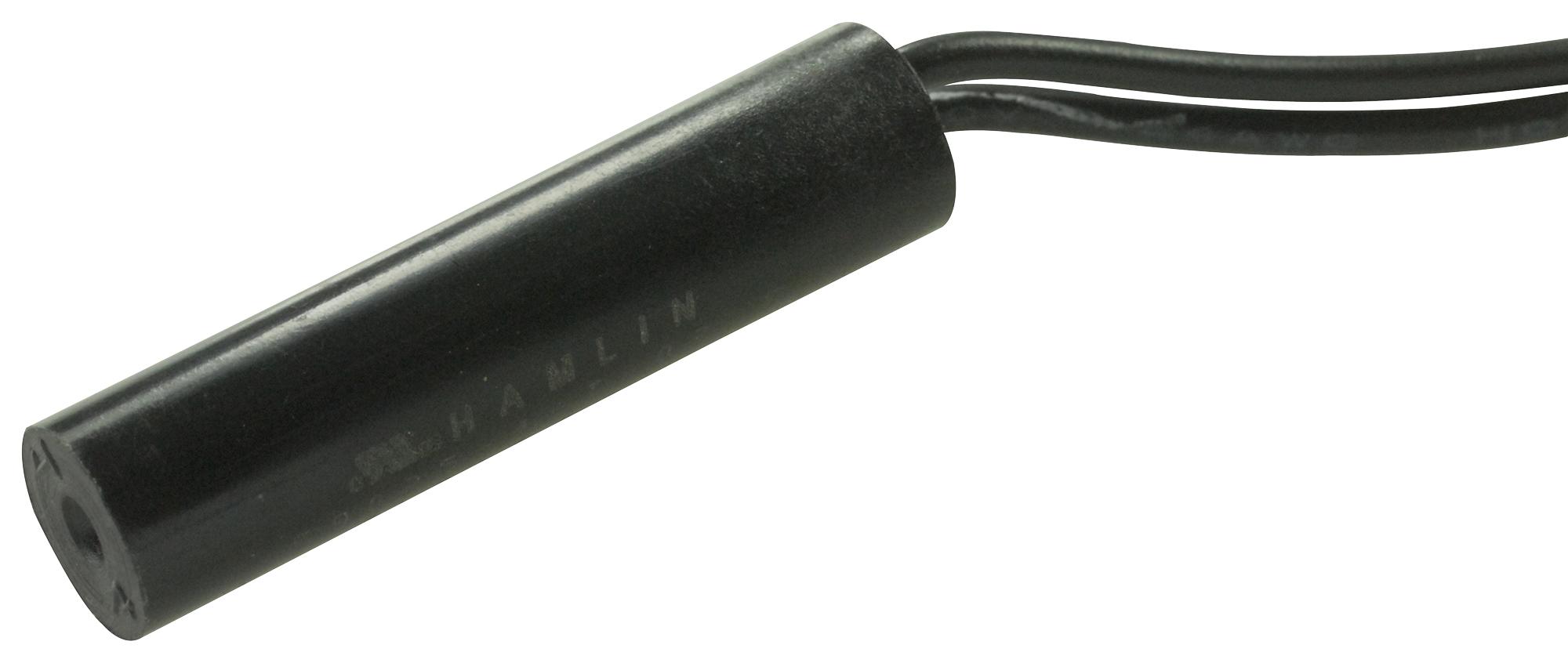

Buy the Hamlin 59025 U–2013 Reliable Proximity Sensor for Industrial Applications
Discover the reliable Hamlin proximity sensor series 59025, designed for industrial automation, security, and level sensing applications. Featuring SPST-NO contact, 1.5A current capacity, and a maximum voltage of 175 VDC, it provides precise activation at 0.216 inches. Its sealed, magnetically operated contacts ensure dependable operation even in contaminated environments. Easy to install with leads termination, this sensor supports non-ferrous materials like plastic and wood. Trust Hamlin for high-quality, durable sensing solutions that enhance your automation and security systems for long-term reliability.
Order your Hamlin Series 59025 proximity sensor today and give your projects the dependable quality they deserve, ensuring reliable position and limit sensing in critical applications.
