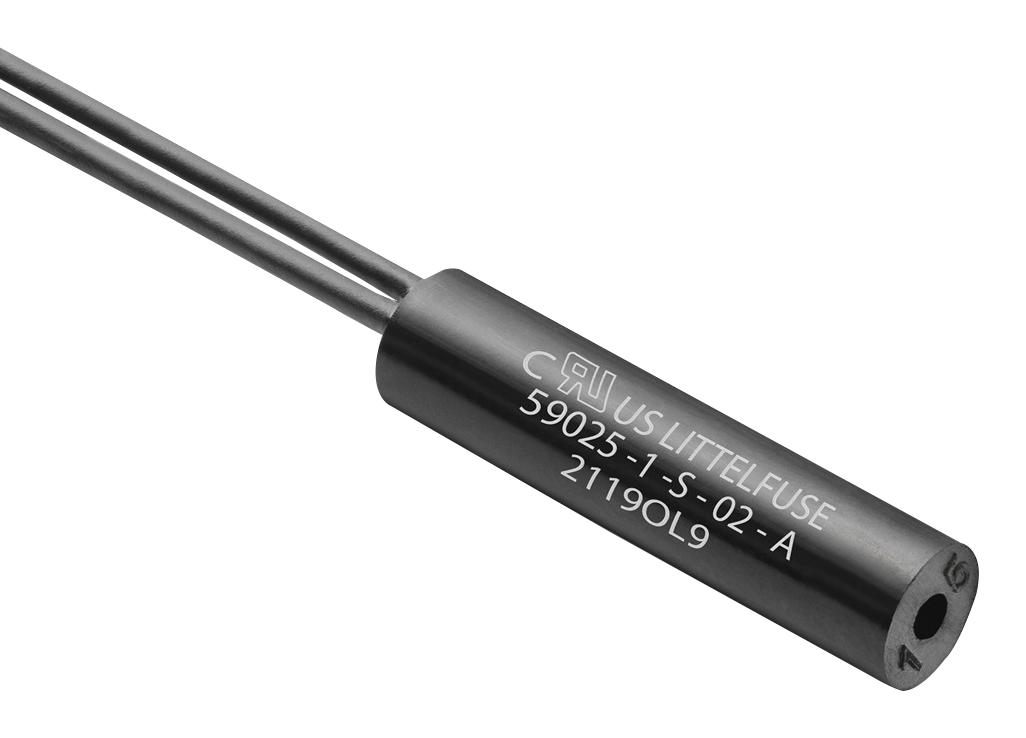

Littelfuse 590251T05A Reed Sensor
The 59025 Reed Sensor is a compact cylindrical device measuring 25.4 mm in length and 6.22 mm in diameter, designed for reliable non-contact switching in wet and harsh environments. It features hermetically sealed, P67-rated housing, UL and REACH compliance, and operates through non-ferrous materials like plastic or aluminum. Available with normally open, normally closed, or change-over contacts, it can switch up to 265 Vac/300 Vde at 10 VA, making it ideal for security, factory automation, and process equipment applications. Small, easy to install, and capable of remote operation, it enhances energy management systems efficiently.
Littelfuse 590251T05A Reed Sensor Specifications:
- Dimensions: 25.4 mm length, 6.22 mm diameter
- Housing Material: PBT with 30% GF, Black Epoxy
- Operating Voltage: Up to 265 Vac/300 Vde at 10 VA
- Contact Type: Normally Open, Normally Closed, Change Over
- Switching Capacity: 10 VA, 265 Vac, 300 Vde
- Operating Temperature: -40°C to +105°C
- Sealing: P67-rated hermetically sealed housing
- Connector: Standard cable options, customized possible
- Compliance: UL Recognized, REACH compliant
- Operation Time: Max 1.0 ms
- Release Time: Max 1.0 ms
- Shock Resistance: Max 100 G
- Vibration Resistance: 30 G
- Application: Security, factory automation, process equipment
- Switching Distance: Varies with sensitivity, from 12 mm to 30 mm depending on option
Buy the Littelfuse 59025 U–Reliable Proximity Sensor for Industrial Applications
Purchase the Littelfuse 59025 Reed Sensor online today and enhance your industrial automation and IoT systems with its compact size, reliable non-contact switching, and high environmental resistance. Ideal for security, process control, and factory automation, this sensor offers easy installation, hermetically sealed housing, and UL/REACH compliance. With options for normally open, closed, or change-over contacts and various sensitivity ranges, it's designed to meet diverse industrial needs. Optimize your energy management systems and automation projects with this durable, high-performance reed sensor, available for quick online ordering.
Buy Littelfuse 59025 now and experience unmatched reliability and performance in harsh environment sensing applications.
