Littelfuse 590401T02A Reed Sensor
The 59040 Press-Fit Firecracker Reed Sensor is a compact, cylindrical proximity sensor designed for easy installation into 9.5mm diameter holes, using a press-fit method. It features a durable plastic housing with three retention ribs for secure mounting and is suitable for position, limit, security, and level sensing applications. Compatible with non-ferrous materials like wood, plastic, and aluminum, it offers customizable sensitivity, cable length, and connector options. The sensor operates in environments with high moisture and contamination, providing reliable, contactless switching up to 200Vdc at 10W for long service life and vibration and shock resistance.
Littelfuse 590401T02A Reed Sensor Specifications:
- Dimensions: 31.0mm length, 9.5mm diameter hole fit
- Contact Ratings: Up to 200Vdc at 10W, switching voltage max 200Vdc, max current 0.35A
- Electrical Ratings: Normally Open, Normally Closed, Change Over contact types
- Operating Temperature: -40°C to +105°C
- Operate/Release Time: ≤1.0ms
- Shock Resistance: up to 100G sine wave
- Vibration Resistance: 30G, 50-2000Hz
- Cable Options: 24 AWG PVC, UL 105°C rated, lengths up to 300mm
- Mounting: Press-fit with three retaining ribs, suited for non-ferrous materials
- Environmental: Suitable for high moisture and contaminated environments
- Switching characteristics: Designed for microcontroller-compatible signals, long-lasting with millions of cycles

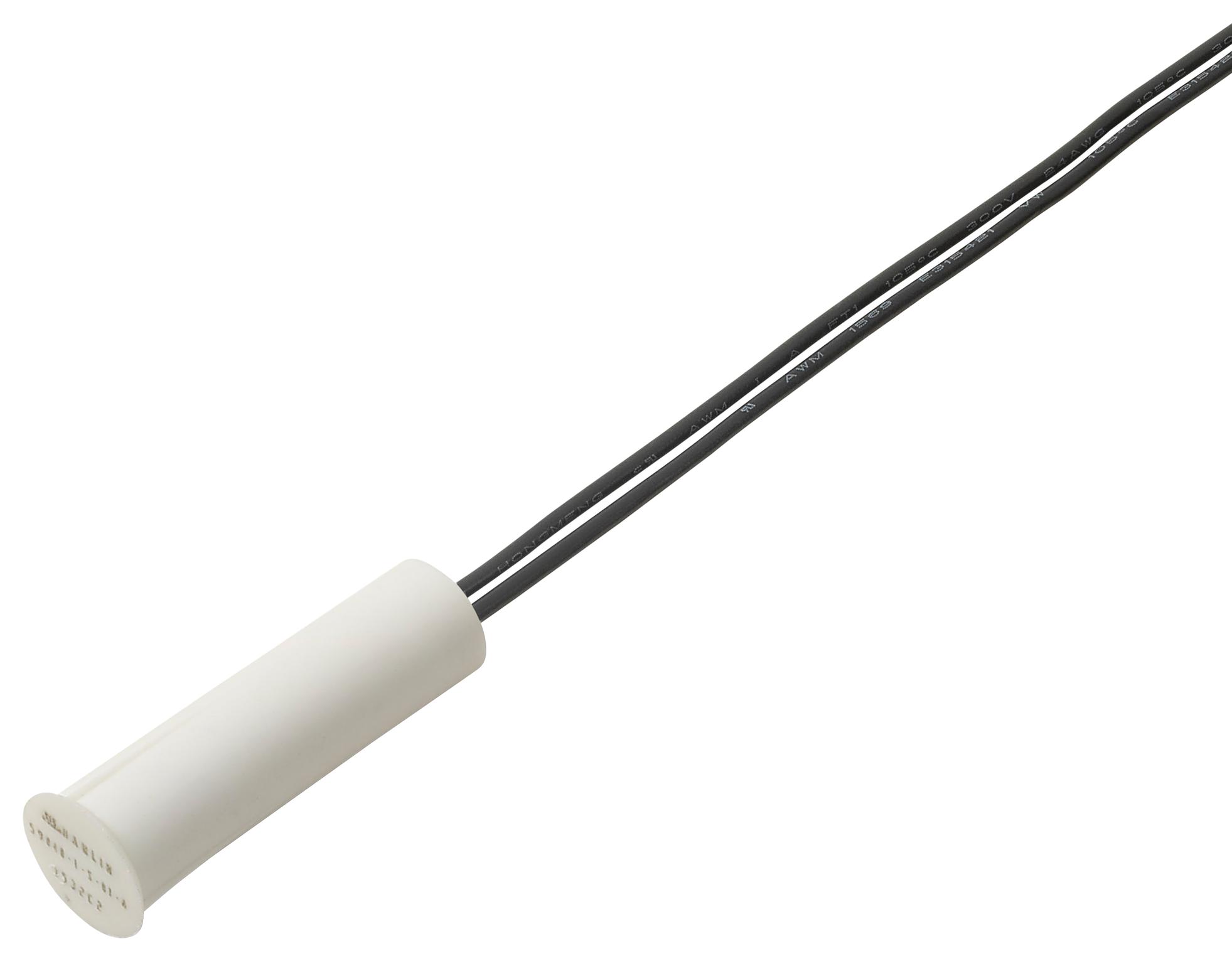

Buy the Buy Littelfuse Reed Sensor Part Number 590401T02A Online
Purchase the Littelfuse Series59040 press-fit reed sensor online for secure, contactless position and limit sensing. Easy to install without screws or glue, it’s ideal for industrial, security, and automation applications. With customizable sensitivity, cable length, and connector options, the sensor operates reliably in high moisture and contaminated environments while providing long-lasting performance with millions of cycles. Suitable for non-ferrous materials like aluminum and plastics, this compact sensor ensures efficient, maintenance-free operation in diverse settings, making it a dependable choice for your project needs.
Order your Littelfuse Series59040 firecracker reed sensor with press-fit design today and ensure reliable, contactless position sensing for your industrial projects.
Frequently Asked Questions
Where can I buy Littelfuse 590401T02A?
You can click on the BUY or RFQ button to purchase 590401T02A from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 590401T02A?
You can download the 590401T02A datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 590401T02A?
Littelfuse
