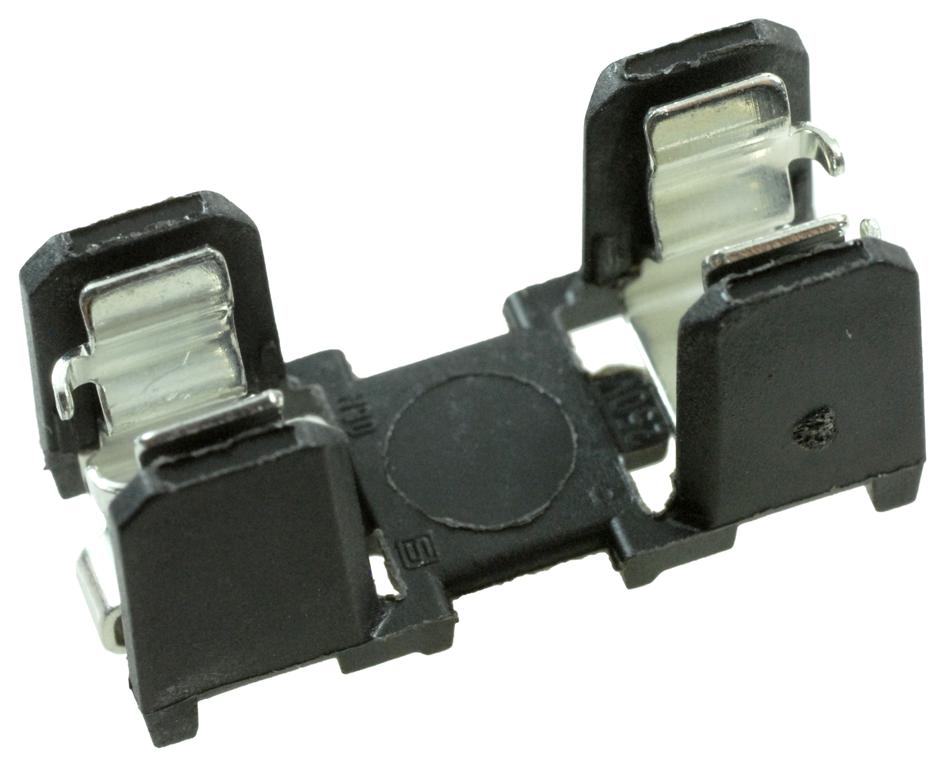

Littelfuse 65800001009 Fuse Holder
The 658 series surface-mount fuse holders accommodate 5 x 20mm fuses and feature options with thermoplastic or LCP bodies with tin or gold-plated copper alloy terminals. They are rated for 250V and 10A, with a maximum operating temperature of -40°C to 85°C. Designed for surface mounting, these fuseholders support reflow and vapor-phase soldering processes and have a UL94V-0 flammability rating. They offer reliable electrical contact resistance of 5 milliohms, dielectric strength over 3kV, and highlight durability suitable for industrial applications requiring secure fuse connections.
Littelfuse 65800001009 Fuse Holder Specifications:
- Rated Voltage: 250V
- Rated Current: 10A
- Operating Temperature: -40°C to +85°C
- Flammability: UL94V-0
- Contact Resistance: 5 milliohms
- Dielectric Strength: >3kV, 50Hz, 1 min
- Insulation Resistance: >10 MO at 600V DC
- Solderability: 235°C / 2s according to IEC 60068-2-58
- Soldering Heat Resistance: 260°C / 10s per IEC 60068-2-20
- Mounting Type: Surface mount, suitable for reflow and vapor-phase soldering
- Temperature Range: -40°C to +85°C (with de-rating)
Buy the Littelfuse 65800001009 – Reliable Fuse Holders for Industrial Applications
Purchase the Littelfuse fuse holder online today and ensure reliable fuse protection in your industrial applications. This fuse holder supports 5x20mm fuses with options in thermoplastic and LCP bodies, featuring tin or gold-plated terminals for enhanced conductivity and corrosion resistance. Rated at 250V and 10A, it operates within a temperature range of -40°C to +85°C, supporting reflow and vapor-phase soldering for easy installation. Its UL94V-0 flammability rating and durable construction make it ideal for demanding industrial environments where safety and reliability are critical. Order now to benefit from fast shipping and expert customer support.
Get Littelfuse 65800001009 fuse holder today—built for durability and secure fuse connections in industrial environments.
Frequently Asked Questions
Where can I buy Littelfuse 65800001009?
You can click on the BUY or RFQ button to purchase 65800001009 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 65800001009?
You can download the 65800001009 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 65800001009?
Littelfuse
