Littelfuse A87878000 Protection Device
The TRF600-150 is a resettable over-current protection device rated at 0.15A, featuring tin-plated copper leads for reliable electrical connections. Designed for telecommunication and networking applications, it provides protection against power cross and induction surges, enhancing the reliability of customer premise and network equipment worldwide. The device is suitable for high-volume electronics assembly, supporting compliance with regulatory standards. It offers fast trip response, improved line balance, low parasitic capacitance, and flat impedance across a range of frequencies. Encased in cured epoxy polymer insulation, it is applicable for both legacy POTS and modern digital communication systems, making it versatile for various communication, security, defense, military, aerospace, and computing applications.
Littelfuse A87878000 Protection Device Specifications:
- Vmax Interrupt: 600V
- Hold Current: 0.15A
- Surge Operating Voltage: 250VAC
- Resistance: Approx. 1.5 Ω (typical)
- Lead Material: Tin-plated copper
- Insulation Material: Cured epoxy polymer
- Soldering Characteristics: ANSI/J-STD-002 Category 3
- Operating Temperature Range: -40°C to 85°C
- Solder Heat Withstand: 10s at 260°C
- Flammability: IEC 695-2-2 Needle Flame Test for 20s
- Agency Recognition: UL, CSA, TUV

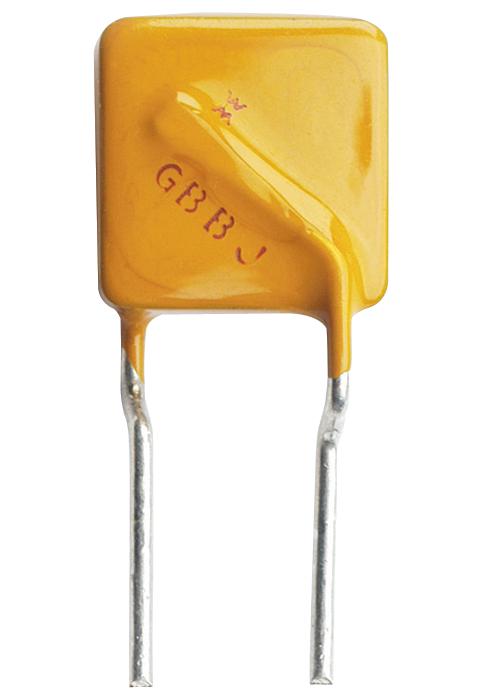

Buy the Buy Littelfuse TRF600-150 Part Number 87878000 Online
Secure your telecommunication and networking systems with the Littelfuse TRF600-150 resettable overcurrent protector, rated at 0.15A. Featuring fast trip response, low parasitic capacitance, and reliable epoxy insulation, it's designed for high-volume assembly and compliance with UL, CSA, and TUV standards. This versatile device offers dependable surge protection against power cross and induction surges, suitable for legacy POTS, digital communication, and defense applications. Enhance your equipment's resilience and safety by ordering this trusted component online today.
Order your Littelfuse SeriesTRF600-150 protection device today and ensure robust surge protection for your telecommunications and networking equipment.
Frequently Asked Questions
Where can I buy Littelfuse A87878000?
You can click on the BUY or RFQ button to purchase A87878000 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part A87878000?
You can download the A87878000 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of A87878000?
Littelfuse
