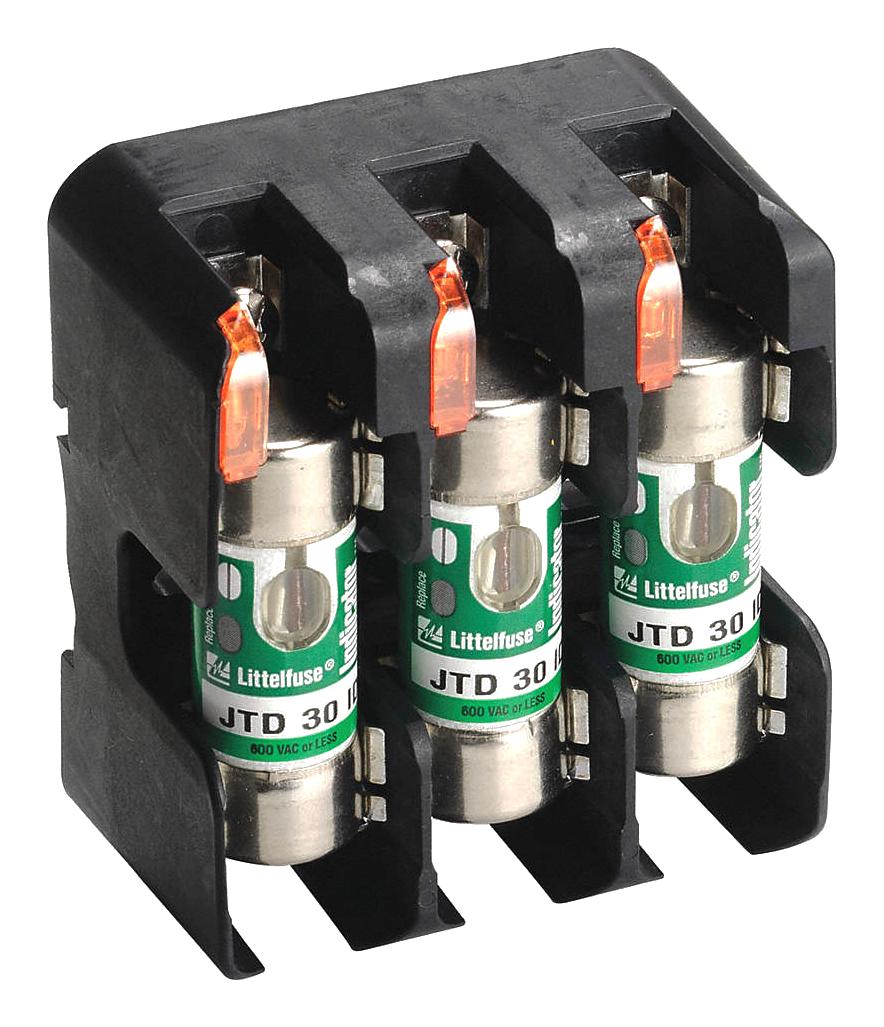

Littelfuse LFJ600603CID Fuse Block
The LF Series Class J fuse blocks by Littelfuse are compact, space-saving devices rated for 600 V and suitable for amperages up to 600 A. These fuse blocks feature reinforced fuse clips, universal mounting holes for easy replacement, and optional indication for most models. They are made of high-quality thermoplastic, tin-plated copper alloy, and zinc-plated steel, ensuring durability and safety. Approved by UL and CSA, these fuse blocks are RoHS and REACH compliant, offering reliable performance in industrial electrical protection applications.
Littelfuse LFJ600603CID Fuse Block Specifications:
- Voltage Ratings: 600V
- Ampere Ratings: 0-600A
- Leakage Current: <0.6 mA at 600 V
- Materials: Base Thermoplastic, Fuse Clip Tin plated copper alloy, Box Lug Aluminum, Pressure Plate Zinc plated steel, Screw Zinc plated steel
- Flammability Rating: UL 94 V-0
- Approvals: UL Listed, CSA Certified
- Environmental Compliance: RoHS, REACH
- Recommended Fuses: Time Delay Series JTD_ID, Series JTD; Fast Acting Series JLS
- Dimensions (mm): 49.5 (1.95) for 30A, 119.9 (4.72) for 60A, 196.1 (7.71) for 100A, 230.1 (9.06) for 200A, 308.8 (12.16) for 600A
- Mounting: Universal holes, snap-to-release DIN-rail capability
- Construction: Reinforced fuse clips, optional safety covers available
Buy the Buy Littelfuse LF Series Class J Fuse Block Part Number LFJ600603CID Online
Purchase the Littelfuse LF Series Class J Fuse Block online today for dependable industrial electrical protection. These high-quality, UL and CSA approved fuse blocks offer reinforced clips, universal mounting, compact design, and excellent safety features. Suitable for voltages up to 600 V and current ratings up to 600 A, they are ideal for reliable circuit overload protection in various industrial applications. Easy to install and compliant with RoHS and REACH standards, ensure long-lasting durability and high performance in your electrical systems.
Get Littelfuse LF Series Class J Fuse Block LFJ600603CID today—reliable, space-efficient, and built for industrial electrical safety.
Frequently Asked Questions
Where can I buy Littelfuse LFJ600603CID?
You can click on the BUY or RFQ button to purchase LFJ600603CID from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part LFJ600603CID?
You can download the LFJ600603CID datasheet or visit the Littelfuse website for support.
Who is the manufacturer of LFJ600603CID?
Littelfuse
