Littelfuse MINISMDC050F2 Datasheet & Stock

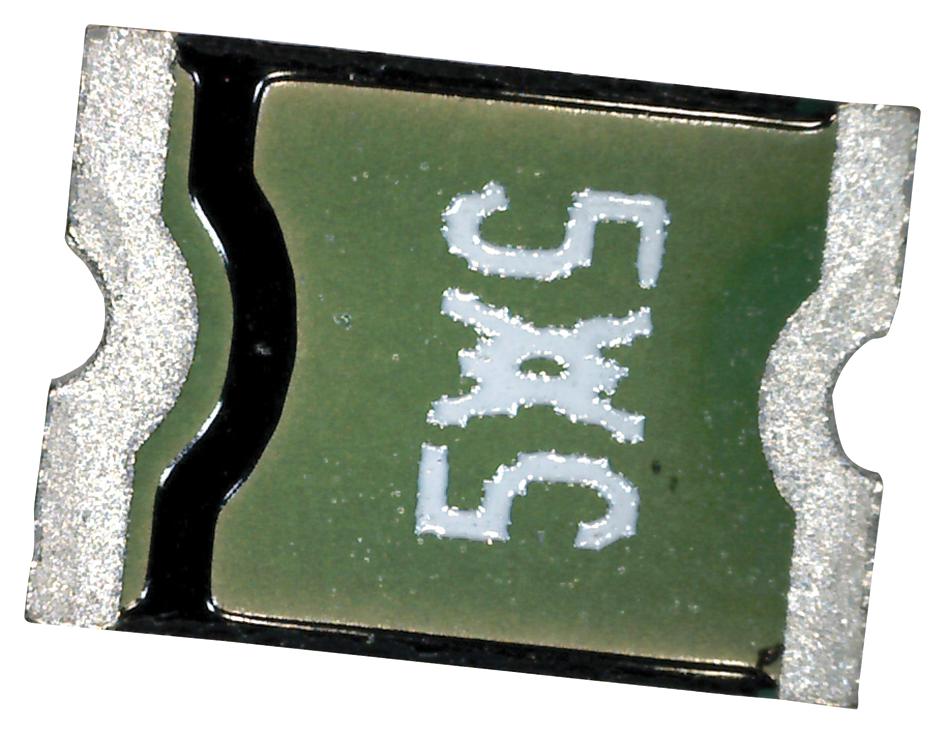

The MINISMDC050F-2 from TE Connectivity is a surface mount PolySwitch resettable device in 45mm x 32mm size. Its smaller size helps to save board space and cost. It optimizes design flexibility and compatible with high volume electronics assembly. UL, CSA and TUV approved Higher voltage ratings allow use in new applications Hold current of 0.5A at room temperature Maximum voltage of 24V Trip current of 1A at room temperature Maximum current of 100A Maximum resistance of 1ohm (post trip) Maximum time to trip is 0.15sec Maximum power dissipation of 0.8W Operating temperature range from -40°C to 85°C Applications Safety, Consumer Electronics, Portable Devices, Multimedia, Automotive, Industrial Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. Warnings This device is intended for protection against overcurrent or overtemperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated.

View MINISMDC050F2Datasheet [pdf]
