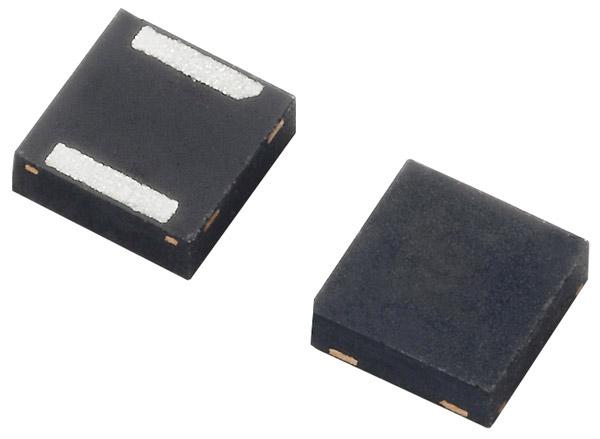

Littelfuse PLED6UQ12 LED Protector
PLED open LED protectors in the Unidirectional Series ensure high reliability by providing a switching electronic shunt around a single failed open LED, maintaining the integrity of the entire LED string. Designed for outdoor lighting and signage, these devices offer reverse battery and power polarity protection, fast switching, and compatibility with PWM signals. Available in low profile QFN and DO-214AA packages, they operate from -40°C to 150°C, making them ideal for harsh outdoor environments and dense circuit board applications.
Littelfuse PLED6UQ12 LED Protector Specifications:
- Maximum Operating Junction Temperature: 150°C
- Storage Temperature Range: -65°C to 150°C
- Package Types: DO-214AA and QFN
- Peak Reflow Temperature: 260°C
- Reflow Temperature Range: 217°C to 260°C
- Thermal Resistance: DO-214AA: 40°C/W, QFN: 60°C/W
- Device Voltage Ratings: 6V, 9V, 13V, 18V
- Reverse Battery Protection: Yes
- Switching Speed: Fast switching suitable for PWM (up to 10 kHz)
- Operating Voltage Range: 6V to 18V
- Compliance: RoHS, Halogen-Free
- Lead Material: Matte Tin Plated
- Embedment: Epoxy body with flammability classification MILSTD-750: Method 1056
- Environmental Resistance: Vibration, thermal cycling, humidity, and resistance to solder heat
- Dimensions: Approx. 3.0x3.0mm for QFN, standard packages for DO-214AA
- Packaging: Tape and reel (e.g., 2500 pcs for DO-214AA)
Buy the Littelfuse Series PLED Open LED Protectors: PLED6UQ12
Order Littelfuse PLED6UQ12 open LED protectors online today and ensure your LED lighting systems maintain high reliability. These protectors safeguard against failed LEDs by providing a quick switching shunt, preventing system failure. They support reverse polarity and PWM signals, offering flexibility for outdoor and industrial applications. Available in compact packages, they are easy to install and ideal for dense circuit boards. Secure your lighting projects with trusted, high-performance LED protection solutions from Littelfuse.
Buy Littelfuse PLED6UQ12 now and experience unmatched reliability and performance in outdoor LED lighting applications.
Frequently Asked Questions
Where can I buy Littelfuse PLED6UQ12?
You can click on the BUY or RFQ button to purchase PLED6UQ12 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part PLED6UQ12?
You can download the PLED6UQ12 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of PLED6UQ12?
Littelfuse
