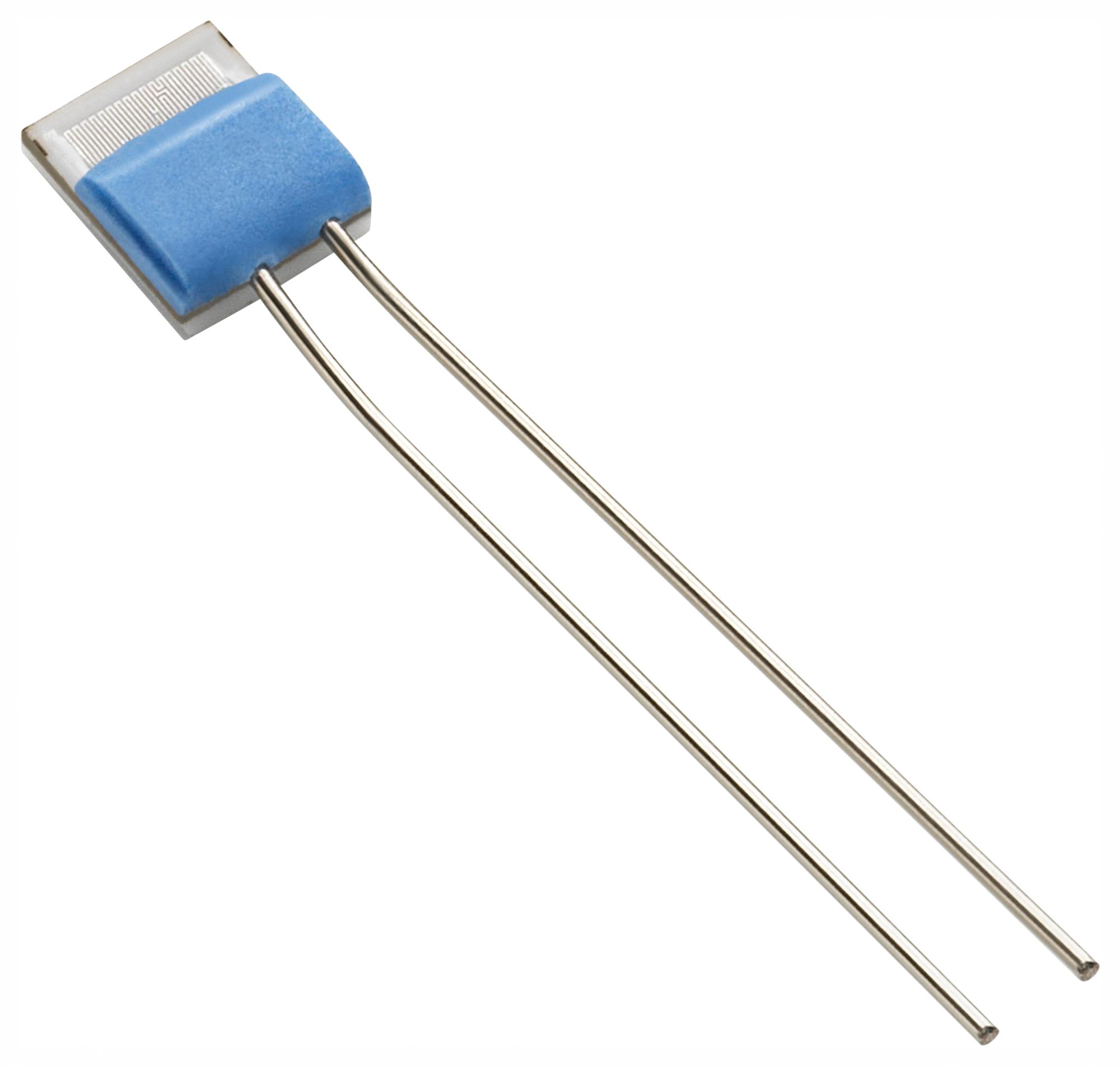

Littelfuse PPG101JA Thin Film Platinum RTD Sensor
The PPG101JA Series Thin Film Platinum RTD Sensors are high-precision, glass-coated platinum resistance temperature detectors designed for accurate temperature measurements from -70°C to +500°C. These RTDs feature a ceramic substrate and a passivated platinum element, offering excellent stability, high reliability, and cost-efficiency compared to wirewound sensors. With resistance tolerances of 0.06% or 0.12% and temperature deviations within ±0.18°C, they suit demanding industrial applications requiring high accuracy. The robust design withstands extreme environmental conditions, making them ideal for process control, HVAC, and scientific instrumentation.
Littelfuse PPG101JA Thin Film Platinum RTD Sensor Specifications:
- Material: Passivated thin film platinum element on ceramic substrate
- Temperature Range: -70°C to +500°C
- Resistance Tolerance: 0.06% (Class F0.15), 0.12% (Class F0.3)
- Temperature Deviation: within ±0.18°C
- Resistance at 0°C: 100Ω or 500Ω or 1000Ω depending on model
- Response Time: 10 seconds in moving air
- TCR: 3,850 ppm/°C
- Sensor Grade: DIN EN 60751 Class F0.15 or F0.3
- Lead Wire: 32 AWG resistance, length varies
- Dimensions: 0.394” length, 0.091” diameter, 0.083” tip size
- Environmental: Withstands high temperatures and extreme conditions
- Application: industrial temperature measurement, process control, HVAC, scientific instrumentation
Buy the Littelfuse PPG101JA – Reliable Temperature Sensor for Industrial Applications
Order the Littelfuse PPG101JA thin film platinum RTD sensor online today and ensure precise temperature monitoring for your industrial processes. Designed for superior stability, high accuracy, and durability, this sensor features resistance tolerances as low as 0.06% and operates reliably between -70°C and +500°C. Its robust ceramic substrate and glass-coated platinum element withstand extreme environmental conditions, making it ideal for scientific, HVAC, and control applications. Secure quick delivery and improve your system’s performance by purchasing this reliable temperature sensor online now.
Buy Littelfuse PPG101JA now and experience unmatched reliability and accurate temperature measurement in demanding environments.
Frequently Asked Questions
Where can I buy Littelfuse PPG101JA?
You can click on the BUY or RFQ button to purchase PPG101JA from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part PPG101JA?
You can download the PPG101JA datasheet or visit the Littelfuse website for support.
Who is the manufacturer of PPG101JA?
Littelfuse
