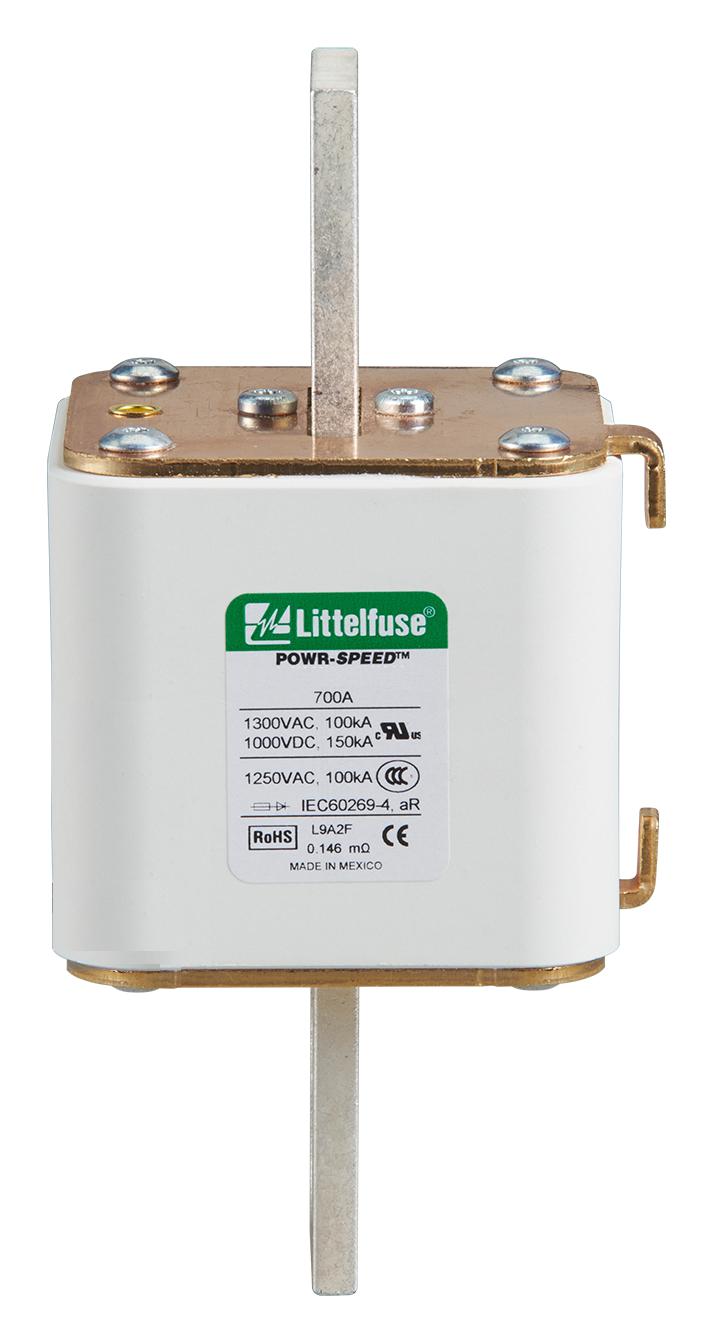

Littelfuse PSR070UL0250Z Semiconductor Fuse
Littelfuse PSR series high-speed square body fuses are designed for protecting power semiconductor devices like diodes, triacs, IGBTs, SCRs, and MOSFETs found in power conversion equipment. These UL recognized, IEC certified fuses offer extremely fast, high-current limiting performance with visual blown fuse indication, suitable for applications such as UPS systems, inverters, drives, energy storage, and electric vehicle charging stations. The ceramic body, plated copper contacts, and bolted blade termination ensure reliable and safe operation with RoHS and REACH compliance, ideal for sensitive, high-power circuits requiring dependable protection.
Littelfuse PSR070UL0250Z Semiconductor Fuse Specifications:
- Voltage Rating AC: 550 V-1300 V
- Voltage Rating DC: 480 V-1000 V
- Amperage Rating: 40 A-2000 A
- Interrupting Rating AC: 100 KA-200 kA
- Interrupting Rating DC: 150 kA
- Time Constant: 10 ms
- Material Body: ceramic
- Contacts: plated copper
- Mounting: bolted blade style
- Approvals: UL 248-13, cURus, IEC 60269-4
- Temperature Range: -55°C to +125°C
- Operating Temperature: Up to +35°C with relative humidity <65%
- Environmental: RoHS and REACH compliant
Buy the Littelfuse PSR070UL0250Z – Reliable High-Speed Semiconductor Fuse for Industrial Applications
Purchase the Littelfuse PSR series semiconductor fuse online today for high-speed protection of power devices. Featuring ceramic bodies, plated copper contacts, and bolted blade termination, these UL recognized, IEC certified fuses provide rapid, reliable current limiting for circuits in power conversion, UPS, inverters, and electric vehicle charging stations. Their visual blown fuse indication and compliance with worldwide standards ensure safety and easy maintenance. Ideal for safeguarding sensitive power electronics, these fuses deliver exceptional durability and performance in demanding industrial environments. Buy now for efficient protection solution.
Get Littelfuse PSR070UL0250Z today—built for precision and long-lasting durability in power semiconductor protection.
Frequently Asked Questions
Where can I buy Littelfuse PSR070UL0250Z?
You can click on the BUY or RFQ button to purchase PSR070UL0250Z from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part PSR070UL0250Z?
You can download the PSR070UL0250Z datasheet or visit the Littelfuse website for support.
Who is the manufacturer of PSR070UL0250Z?
Littelfuse
