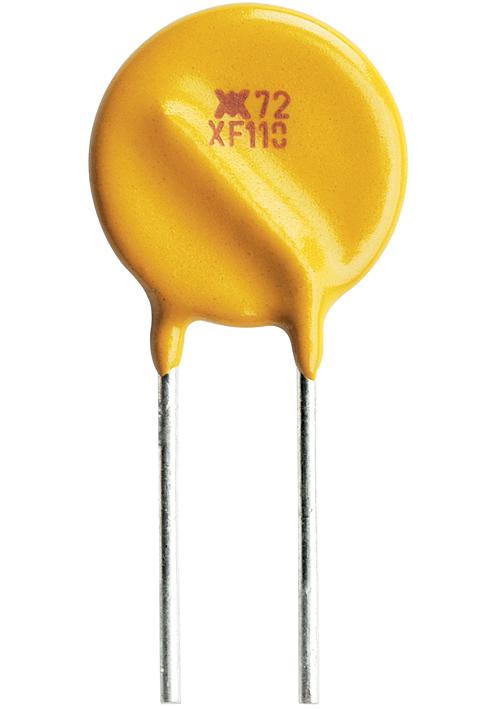

Littelfuse RXEF110 Radial PolySwitch Fuse
The RXEF110 is a radial leaded PolySwitch® PTC resettable fuse designed for high-volume electronic assemblies. It features low hold currents down to 50mA and a high voltage rating of up to 72V. Suitable for applications like satellite receivers, transformers, modems, CD-ROM drives, gaming machines, battery packs, IEEE1394 ports, USB hubs, and peripherals. It helps meet regulatory standards, offers higher voltage capabilities, and provides fast trip times. With low resistance and multiple options, it enhances design flexibility for communications, industrial systems, power management, and consumer electronics.
Littelfuse RXEF110 Radial PolySwitch Fuse Specifications:
- Voltage Rating: Up to 72V
- Hold Current: Down to 50mA
- Trip Time: Fast
- Resistance: Low, varies by model
- Physical Size: Radial leaded package
- Lead Material: Tin-plated copper (20 AWG, 0.52mm2)
- Solderability: ANSI/J-STD-002 Category 3
- Operation Temperature: -40°C to 85°C
- Environmental Resistance: No change after humidity, thermal shock, and passive aging tests
- Agency Recognition: UL, CSA, TUV
- RoHS Compliant, ELV Compliant
Buy the TE PolySwitch 110 U 2013 Reliable High-Voltage Resettable Fuse for Industrial Applications
Enhance your electronic safety and reliability with the TE series RXEF110 resettable fuse. Designed for high-volume applications, this device features a low hold current of 50mA, high voltage capacity up to 72V, and quick trip times to protect sensitive components. Perfect for satellite receivers, power supplies, and consumer electronics, it provides excellent regulatory compliance and flexible design options. Buy online now to secure dependable circuit protection and advanced overcurrent safeguarding for your industrial, communication, and consumer electronic projects.
Order your TE Series RXEF110 high-current resettable fuse today and ensure reliable overload protection in your electronic projects.
Frequently Asked Questions
Where can I buy Littelfuse RXEF110?
You can click on the BUY or RFQ button to purchase RXEF110 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part RXEF110?
You can download the RXEF110 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of RXEF110?
Littelfuse
