Littelfuse SC133301ETG ESD Protection Diode Array
The SC1333-01ETG TVS diode arrays are designed for high ESD protection, featuring back-to-back diodes fabricated in proprietary silicon avalanche technology. They provide robust protection against electrostatic discharges up to +30kV contact and +30kV air discharge, with a low capacitance of 8pF and low leakage current. Suitable for data lines, they offer up to 5A surge ratings with low clamping voltages. Compliant with IEC standards, these space-saving 0402 packages are halogen-free, lead-free, and RoHS compliant, ideal for mobile phones, portable medical devices, and sensitive electronics.
Littelfuse SC133301ETG ESD Protection Diode Array Specifications:
- Flammability: UL 94V-0
- Temperature Rating: -40°C to 125°C operating, -56°C to 150°C storage
- Maximum Surge Current: 5A (8/20us)
- Clamping Voltage: Low, specific values guaranteed by design
- Capacitance: 8pF (typ @ V,=0V)
- Reverse Standoff Voltage: Value not specified
- Breakdown Voltage: Value not specified
- Leakage Current: Low leakage at V,=3.3V
- Dielectric: Proprietary silicon avalanche technology
- Package: Space-efficient 0402
- Compliance: IEC 61000-4-2, RoHS, Halogen and Lead free
- Soldering Parameters: Reflow temperature max 260°C, with specified profile
- Material: Copper alloy lead material, silicon substrate
- Certification: UL Recognized, V-0 flammability rating

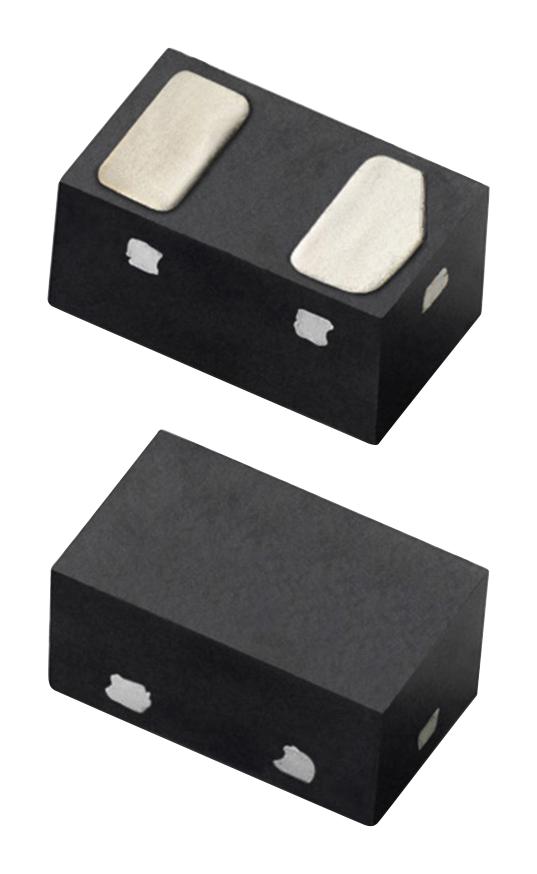

Buy the Littelfuse SC1333-01ETG – Reliable ESD Protection for Industrial Applications
Secure your sensitive electronics with the Littelfuse SC1333-01ETG diode array. This compact, space-saving component offers excellent ESD protection up to 30kV IEC standards, with low capacitance and surge ratings up to 5A. Designed for high reliability in portable and compact electronic devices, it is halogen and lead free, RoHS compliant, and suitable for mobile phones, medical devices, and data line protection. Purchase online today for dependable, space-efficient surge protection.
Order your Littelfuse SC1333-01ETG diode array today and ensure your electronic devices are protected against high-voltage ESD events with space-efficient design.
Frequently Asked Questions
Where can I buy Littelfuse SC133301ETG?
You can click on the BUY or RFQ button to purchase SC133301ETG from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part SC133301ETG?
You can download the SC133301ETG datasheet or visit the Littelfuse website for support.
Who is the manufacturer of SC133301ETG?
Littelfuse
