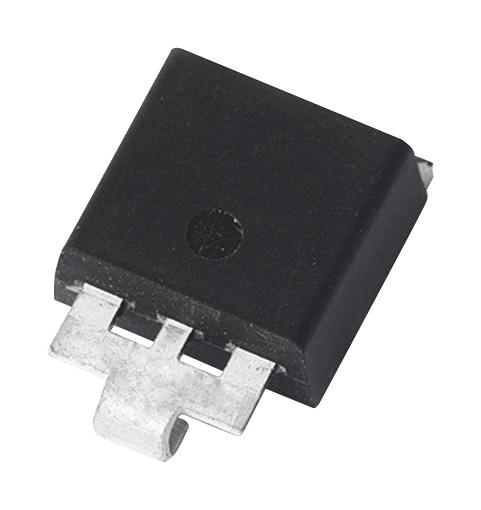

Littelfuse SLD8S24A TVS Diodes
The SLD8S series surface mount TVS diodes provide reliable overvoltage protection for sensitive electronics in industrial and automotive environments. Packaged in SMTO-263, these diodes feature fast response times below 1.0ps, excellent clamping capability, and meet IEC-61000-4-2 ESD and IEC 61000-4-4 EFT standards. Designed for high temperature reflow soldering at 260°C, they are RoHS, halogen-free, and compliant with strict environmental regulations. Suitable for protecting data lines and inductive switching circuits with low leakage currents and high power dissipation.
Littelfuse SLD8S24A TVS Diodes Specifications:
- Peak Pulse Power: varies by model, up to 80 W on heatsink at 25°C
- Stand-off Voltage: 65V to 87V depending on model
- Breakdown Voltage: specified per model, typically around 120V to 330V
- Clamping Voltage: peak voltage at specified peak current
- Reverse Leakage Current: low at V, specifications vary per model
- Forward Voltage Drop: approximately 18V at 100A
- Maximum Instantaneous Forward Voltage: 18V at 100A
- Peak Forward Surge Current: 8.3A single pulse
- Operating Junction and Storage Temperature Range: -55°C to +175°C
- Typical Thermal Resistance Junction: specified per model, high thermal stability
- ESD Protection: 30kV (Air), 30kV (Contact) in accordance with IEC 61000-4-2
- EFT Immunity: compliant with IEC 61000-4-4
- Package: SMTO-263, compatible with DO-218AB footprint
- Material: Glass passivated chip in modified TO-263, epoxy resin
- Soldering: qualified for reflow at 260°C/10 sec, RoHS and halogen free
- Finish: Matte tin plating, RoHS compliant, Pb-free
Buy the Vox Series SLD8S TVS Diodes: SLD8S24A
Secure your electronic systems with the high-performance SLD8S series TVS diodes. Designed for fast response times below 1.0ps, these surface mount devices offer excellent clamping and ESD/EFT protection, ensuring your sensitive components are safeguarded from voltage spikes, inductive loads, and load dump conditions. Suitable for industrial and automotive applications, they feature high temperature reflow soldering capability, RoHS compliance, and low leakage current. Purchase online now to enhance your electronic device’s resilience and durability with proven transient voltage suppression technology.
Buy Vox SLD8S24A now and experience unmatched reliability and high-speed overvoltage protection for your sensitive electronic circuits.
Frequently Asked Questions
Where can I buy Littelfuse SLD8S24A?
You can click on the BUY or RFQ button to purchase SLD8S24A from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part SLD8S24A?
You can download the SLD8S24A datasheet or visit the Littelfuse website for support.
Who is the manufacturer of SLD8S24A?
Littelfuse
