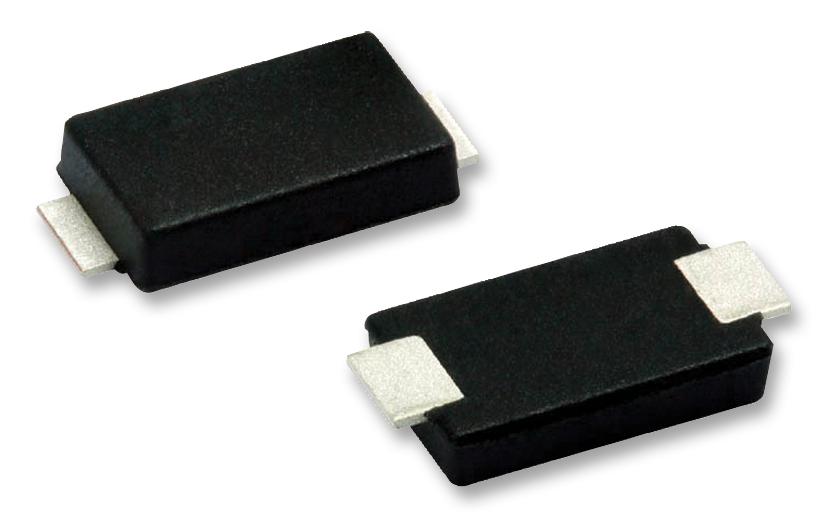

Littelfuse SMA6L50A Transient Voltage Suppressor Diode
The SMA6L50A transient voltage suppression diode offers high peak pulse power dissipation of 600W in a compact surface-mount package, ideal for telecom, industrial, and consumer circuits. It provides excellent ESD and EFT protection for sensitive data lines, with fast response times of less than 1.0ns, and features a low forward voltage drop. The device operates within a temperature range of -55°C to +150°C, with a low leakage current of less than 1pA when voltage exceeds 12V. Constructed with a glass-passivated junction and RoHS compliance, it ensures reliable performance and safety.
Littelfuse SMA6L50A Transient Voltage Suppressor Diode Specifications:
- Peak Pulse Power Dissipation: 600W
- Stand-off Voltage: 5.0V to 20.0V depending on model
- Maximum Reverse Breakdown Voltage: varies by model
- Clamping Voltage: measured at peak impulse current
- Forward Surge Current: 8.3ms
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +175°C
- Thermal Resistance Junction-to-Lead: specified per datasheet
- Reflow Soldering Temperature: 260°C for 40 seconds
- Material: Glass passivated junction, RoHS compliant, halogen free, V-0 UL rating
- Package: Surface mount, compact low profile design
Buy the Buy Littelfuse SMA6L50A Part Number SMA6L50A Online
Secure the Littelfuse SMA6L50A transient voltage suppression diode online today and ensure reliable circuit protection against voltage transients. This 600W surface-mount device features fast response times less than 1.0ns, low leakage current, and a wide operating temperature range up to +150°C, making it ideal for telecom, industrial, and consumer electronics. Its compact design, RoHS compliance, and V-0 flammability rating guarantee safety, durability, and easy integration into your circuits. Protect your sensitive electronics effectively with this high-performance TVS diode today.
Get Littelfuse SMA6L50A today—built for precision and long-lasting durability in electronic circuit protection.
Frequently Asked Questions
Where can I buy Littelfuse SMA6L50A?
You can click on the BUY or RFQ button to purchase SMA6L50A from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part SMA6L50A?
You can download the SMA6L50A datasheet or visit the Littelfuse website for support.
Who is the manufacturer of SMA6L50A?
Littelfuse
