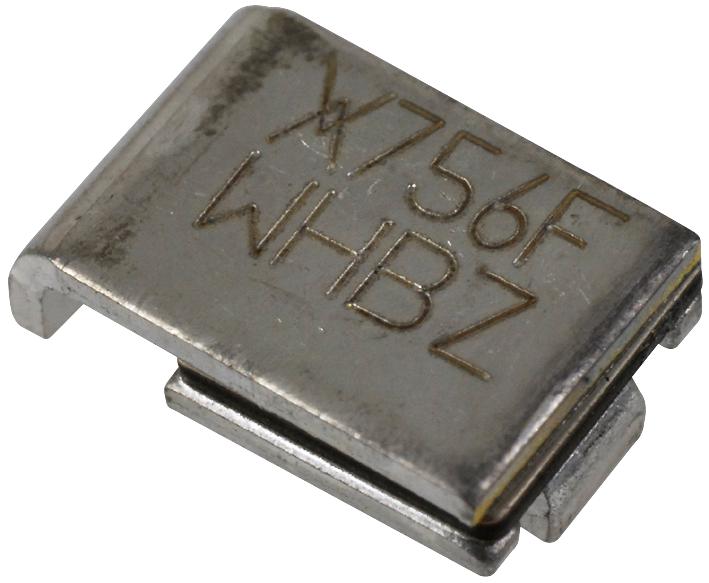

Littelfuse SMD075F602 Surface-Mount Circuit Protector
PolySwitch resettable surface-mount devices provide effective circuit protection for electronic applications. They support high current ratings from 0.05 to 3.1A and voltage ratings up to 60V, ensuring reliability in automotive, industrial, and consumer electronics. These RoHS and halogen-free devices feature fast trip times, low resistance, and broad application versatility, making them ideal for protecting power supplies, data lines, and critical electronic modules in high-volume manufacturing environments. Their compact footprint simplifies PCB design and compliance with regulatory standards.
Littelfuse SMD075F602 Surface-Mount Circuit Protector Specifications:
- Size: 4532mm/1812mils
- Hold Current: 0.75A
- Voltage Rating: 33V
- Maximum Resistance: 0.36Ω
- Operating Temperature Range: -40°C to 85°C, up to 125°C for some series
- Terminal Pad Material: 100% Matte Tin with Nickel Underplate
- Soldering Characteristics: ANSI/J-STD-002 Category 1 or 3
- Solder Heat Withstand: IEC-STD-68-2-20
- Flammability Resistance: IEC 695-2-2 Needle Flame Test
- Environmental Durability: Thermal Shock, Humidity Aging, Vibration tests
- Certifications: UL, CSA, TUV
Buy the Littelfuse SMD075F602 – Reliable Circuit Protection for Industrial Applications
Secure your electronic systems with Littelfuse surface-mount circuit protection devices. These RoHS and halogen-free PPTC resettable fuses support high voltage and current ratings, ensuring quick protection during fault conditions. Their compact size enables space-saving PCB designs, ideal for automotive, industrial, and consumer electronics. With UL recognition and broad application versatility, they provide fast trip times, low resistance, and compliance with industry standards. Purchase online now to enhance your circuit safety and meet regulatory requirements seamlessly.
Buy Littelfuse SMD075F602 now and experience unmatched reliability and performance in protecting your electronic devices.
Frequently Asked Questions
Where can I buy Littelfuse SMD075F602?
You can click on the BUY or RFQ button to purchase SMD075F602 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part SMD075F602?
You can download the SMD075F602 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of SMD075F602?
Littelfuse
