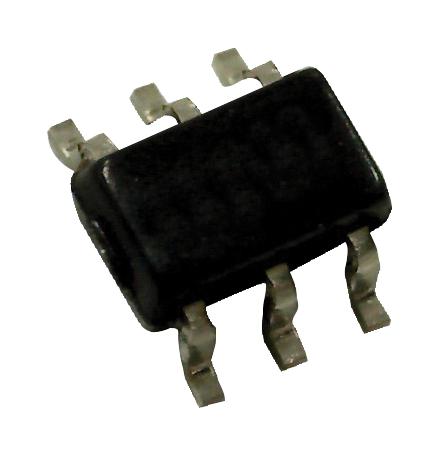

Littelfuse SP0505BAJTG Surface Mount TVS Diode Array
The surface mount TVS avalanche diode array provides transient voltage suppression to protect sensitive digital and analog circuits from ESD and other transient overvoltage events. Designed to meet IEC 61000-4-2 standards, these arrays are ideal for high-speed signal lines with voltage levels up to 5VDC. Crafted with monolithic silicon structures, they feature low capacitance, fast response time, and clamp voltage, making them suitable for mobile phones, USB devices, and digital cameras in compact packages such as SC70, SOT-23, and MSOP.
Littelfuse SP0505BAJTG Surface Mount TVS Diode Array Specifications:
- Maximum Storage Temperature: 65°C to +150°C
- Package Power Dissipation: SC70 0.2W, SOT23-3 0.225W, MSOP 0.5W
- Reverse Standoff Voltage: < 55V
- Leakage Current at 5V: 100 nA
- Clamp Voltage (Pos. 1mA): 70-78-85 V
- Clamp Voltage (Neg. 10mA): 0.4-0.8-1.2 V
- ESD Capability: IEC 61000-4-2, 30 kV contact/discharge, MIL STD 883, 30 kV HBM
- Capacitance at 2.5V @ 1MHz: 30 pF
- Response Time: <1 ns
- Operating Temperature Range: -40°C to 85°C
- Diode Dynamic Resistance: Forward 1.0Ω, Reverse 14Ω
