Littelfuse SP1201WTGCHV High Voltage TVS Protection Array
The SP1201WTGCHV is a high-voltage bidirectional TVS diode array designed for robust electrostatic discharge (ESD) and overvoltage transient protection. It safely absorbs repetitive ESD strikes above IEC 61000-4-2 Level 4 (+8kV contact, +30kV air) and surge currents up to 8A, ensuring protection for sensitive electronics in portable devices, LED lighting, and communication interfaces like RS232, RS485, and CAN bus. The device features low clamping voltage, low leakage currents, halogen-free, lead-free, and RoHS compliance, making it suitable for modern electronic applications.
Littelfuse SP1201WTGCHV High Voltage TVS Protection Array Specifications:
- Reverse Standoff Voltage: 24.0 V
- Reverse Breakdown Voltage: 26.7 V
- Leakage Current: 0.01 pA at 24V
- Clamp Voltage: 32 V at 1A, 40 V at 3A
- Peak Pulse Current: 3.0 A
- Discharge Voltage IEC 61000-4-2: +24 kV (Air), +18 kV (Contact)
- Diode Capacitance: 17 pF
- Operating Temperature: -40°C to 125°C
- Storage Temperature: -55°C to 150°C
- Package Type: Flip chip
- Soldering Parameters: Peak temp 260°C, reflow in 60-180 sec with max 217°C
- Compliance: UL 94V-0, RoHS, Halogen-Free

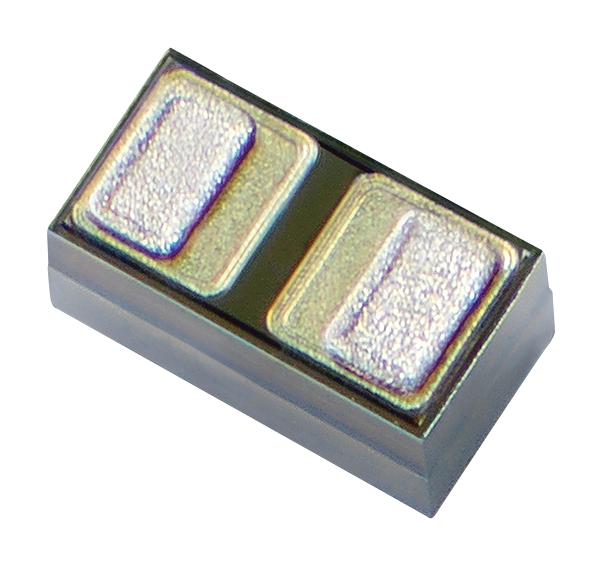

Buy the Littelfuse SP1201WTG-C-HV U+2013 Reliable High Voltage TVS Protection for Industrial Applications
Secure your electronic devices with the Littelfuse SP1201WTG-C-HV, a high-voltage bidirectional TVS diode array. It offers superior ESD and transient surge protection for portable electronics, LED lighting modules, and industrial communication systems like RS232 and CAN bus. Its low clamping voltage ensures minimal stress during surges, while low leakage current promotes efficiency. The compact flip chip package, along with RoHS and halogen-free compliance, makes it ideal for modern manufacturing. Get yours online today for dependable performance and enhanced device safety.
Buy Littelfuse SP1201WTG-C-HV now and experience unmatched reliability and performance in ESD and transient protection for your sensitive electronics.
Frequently Asked Questions
Where can I buy Littelfuse SP1201WTGCHV?
You can click on the BUY or RFQ button to purchase SP1201WTGCHV from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part SP1201WTGCHV?
You can download the SP1201WTGCHV datasheet or visit the Littelfuse website for support.
Who is the manufacturer of SP1201WTGCHV?
Littelfuse
