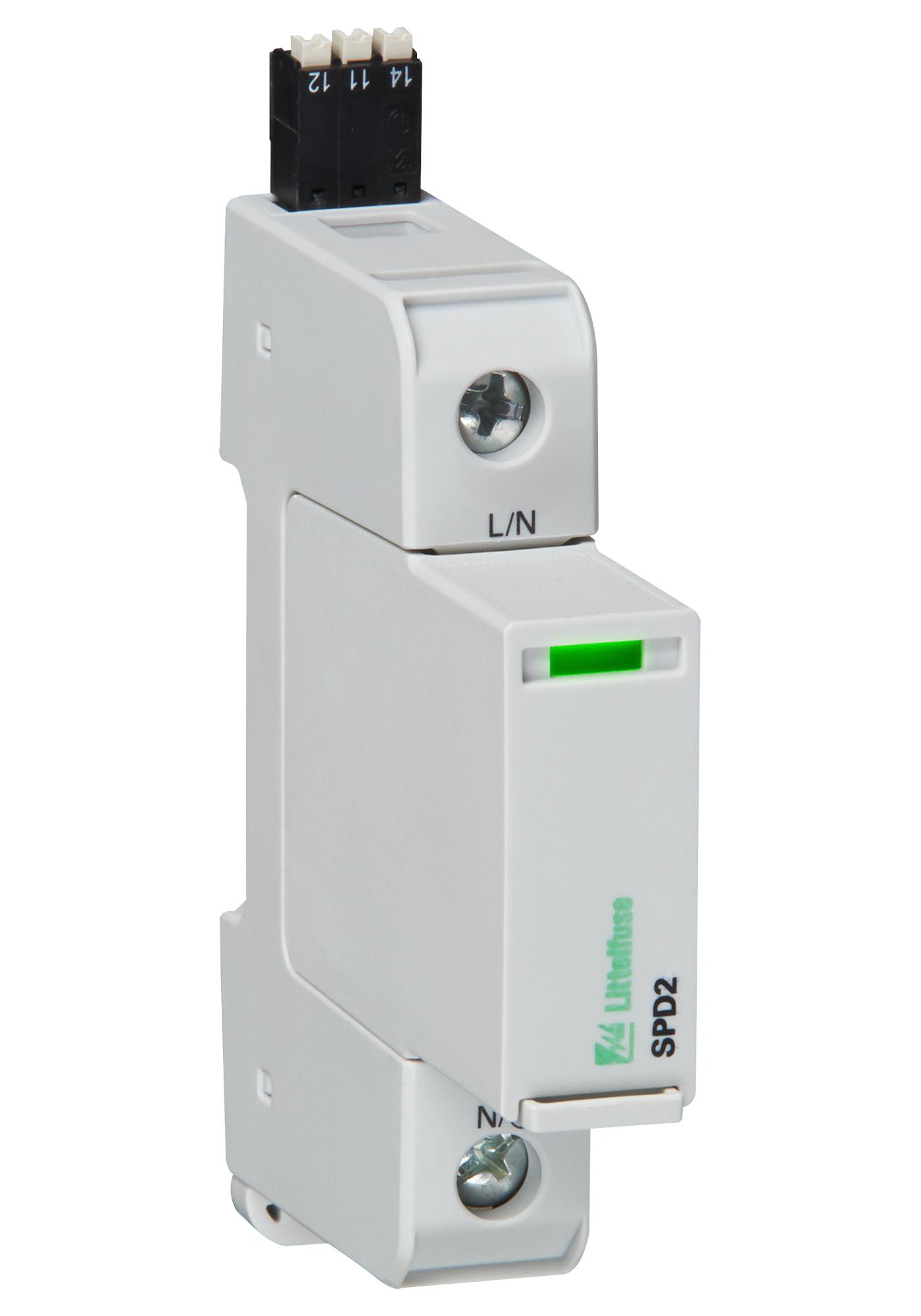

Littelfuse SPD27501P0R Surge Protection Device
The surge protection device SPD2 1P+0 series offers reliable equipment protection against transient overvoltage events, limiting damage during micro-second surges. Suitable for 60V to 600V applications, it features a compact design with a visual life indicator, thermal disconnection, and remote contacts for easy maintenance. Its high-energy MOV capacity ensures fast response times, reducing downtime and equipment degradation. Compatible with a variety of network systems, these plug-in modules are ideal for sub-distribution boards, providing robust, compliant, and cost-effective surge protection for industrial and commercial environments.
Littelfuse SPD27501P0R Surge Protection Device Specifications:
- Maximum Continuous Operating AC Voltage: 75V to 750V depending on model
- Maximum Discharge Current: 20kA (8/20 µs)
- Nominal Discharge Current: 20kA
- Response Time: < ns
- Housing Material: Thermoplastic UL94V-0
- Dimensions: 180.0 mm (W) x 70.0 mm (D) x 45.0 mm (H); fits 1TE module, mounting on DIN rail
- Operating Temperature: -40°C to +80°C
- Altitude: Up to 4,000 m
- Conductor Cross Section: 16-35 mm² (solid or flexible)
- Standards: IEC 61643-11:2011, UL 1449 4th Edition
- Protective Elements: High energy MOV capacity, thermal protection
- Response Time: Less than nanoseconds
- Mounting: 35 mm DIN Rail
- Degree of Protection: IP20 (built-in)
- Warranty: See manufacturer website for details
Buy the Littelfuse SPD2-750-1P0-R Reliable Surge Protection for Industrial Applications
Explore the Littelfuse SPD2-750-1P0-R surge protection device, designed to safeguard your electrical systems from damaging transient surges. With its compact design, high discharge capacity, and advanced MOV technology, it provides quick response times and reliable performance for industrial and commercial applications. Easy to install on DIN rail, it features thermal disconnection and remote contacts for simple maintenance. Protect your equipment efficiently and ensure continuous operation by purchasing this robust surge protector online today for peace of mind and optimal system reliability.
Buy Littelfuse SPD2-750-1P0-R now and experience unmatched reliability and performance in surge protection.
