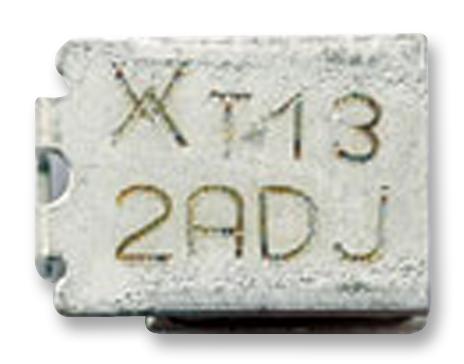

Littelfuse TS250130FRA2 Polyfuse
The TS250-130F-RA-2 is a 0.15A polyfuse resettable device designed for over-current protection in telecommunication and networking equipment. It features nickel under-plated, tin-plated brass terminals and is suitable for applications requiring reliable over-current, over-voltage, and surge protection. This device helps prevent damage from power cross and induction surges, enhancing the reliability of customer premises and network devices. Compatible with high-volume electronics assembly, it meets various regulatory requirements and is suitable for legacy POTS and modern digital communication systems.
Littelfuse TS250130FRA2 Polyfuse Specifications:
- Hold Current: 0.15A
- Voltage Rating (Vmax): 250V
- Interrupt Voltage (Voc): 60V
- Voltage (Vams): 250V
- Resistance Range: Typical resistance 0.15Ω
- Peak Pulse Current: 3.0A
- Operating Temperature Range: -40°C to 85°C
- Terminal Material: Nickel-plated brass
- Terminal Material (insulation): Nylon resin (UL94V-0), 1000V dielectric rating
- Flammability: IEC 695-2-2 Needle Flame Test 20s
- Soldering Characteristics: ANSI/J-STD-002, Category 3
- Solder Heat Withstand: IEC-STD 68-220, 10s at 260°C+5°C
- Environmental Tests: Passive aging 60°C/1000h, Humidity aging 85°C/85% RH/1000h, Thermal shock 125°C/-55°C (10x), MIL-STD-202, Method 215F
- Lead Material: Tin-plated copper, 22 AWG
- Physical Dimensions: Length 48mm, Width 20mm, Height 16mm (typical)
Buy the PolySwitch Series TS250 0.15A Surge Protection Device: TS250130FRA2
Secure your telecommunication and networking equipment now with the PolySwitch Series TS250-130F-RA-2. This high-quality 0.15A resettable fuse provides excellent surge and over-current protection, helping prevent damage from power surges and ensuring maximum reliability. Perfect for legacy POTS, digital communication systems, and customer premise equipment, it is compatible with high-volume manufacturing and meets all industry safety standards. Make your purchase online today and safeguard your critical electronic systems with trusted over-current protection.
Order your PolySwitch Series TS250 0.15A surge protection device today and ensure reliable over-current protection for your telecommunication and networking systems.
Frequently Asked Questions
Where can I buy Littelfuse TS250130FRA2?
You can click on the BUY or RFQ button to purchase TS250130FRA2 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part TS250130FRA2?
You can download the TS250130FRA2 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of TS250130FRA2?
Littelfuse
