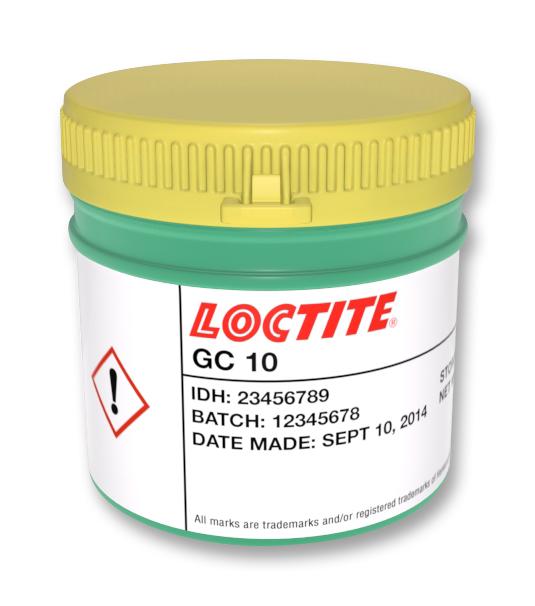

LOCTITE GC10SAC305T3885V52K500G Solder Paste
LOCTITE GC 10 is a halogen-free, no-clean, Pb-free solder paste formulated for reliable soldering in electronic manufacturing. It offers excellent solderability across various surface finishes such as immersion silver, OSP-Cu, ENIG, and CuNiZn, ensuring shiny solder joints with minimal hot slump. Its formulation enhances field application yields and paste utilization while providing long-term stability over wide temperature ranges. Suitable for high-speed printing and compatible with industry-standard SAC alloys, this solder paste supports multiple reflow techniques including convection and vapor phase, ensuring dependable, high-quality solder joints in complex PCB assemblies.
LOCTITE GC10SAC305T3885V52K500G Solder Paste Specifications:
- Particle Size Distribution (Type 3 Powder): 25 to 45 μm
- Particle Size Distribution (Type 4 Powder): 20 to 38 μm
- Solder Alloy: SAC305 (Sn96.5 Ag3.0 Cu0.5), Melting Point: 217°C, Ag content: 3.0%
- Metal Content: 88.5%
- Brookfield Viscosity @25°C: 933,000 cP (Type 3), 900,000 cP (Type 4)
- Malcom Viscosity @25°C: 207 Pa.s (Type 3), 190 Pa.s (Type 4)
- Printing Speed: 25 to 125 mm/sec
- Stencil Life: Up to 72 hours
- Abandon Time: Up to 24 hours
- Reflow Temperature Range: 150-200°C
- Residue: Clear, colorless, testable after 4 reflows
- Storage: 5°C to 25°C, minimum shelf life 365 days
Buy the LOCTITE SAC305 U–Reliable Solder Paste for Industrial Applications
Experience the high-performance reliability of LOCTITE GC 10 solder paste for your electronic manufacturing needs. This halogen-free, no-clean, Pb-free solder paste ensures excellent solderability, minimal hot slump, and shiny joints, suitable for complex PCB assembly. Its enhanced stability and wide reflow window support high-speed printing and multiple soldering processes, making it ideal for demanding industrial environments. Purchase LOCTITE GC 10 online today and ensure your manufacturing process benefits from proven quality and consistent results in every reflow.
Get LOCTITE GC 10 today—designed for high-quality, stable soldering with excellent wetting and long-term reliability.
Frequently Asked Questions
Where can I buy LOCTITE GC10SAC305T3885V52K500G?
You can click on the BUY or RFQ button to purchase GC10SAC305T3885V52K500G from an authorized LOCTITE distributor.
How do I troubleshoot issues or seek technical support for part GC10SAC305T3885V52K500G?
You can download the GC10SAC305T3885V52K500G datasheet or visit the LOCTITE website for support.
Who is the manufacturer of GC10SAC305T3885V52K500G?
LOCTITE
