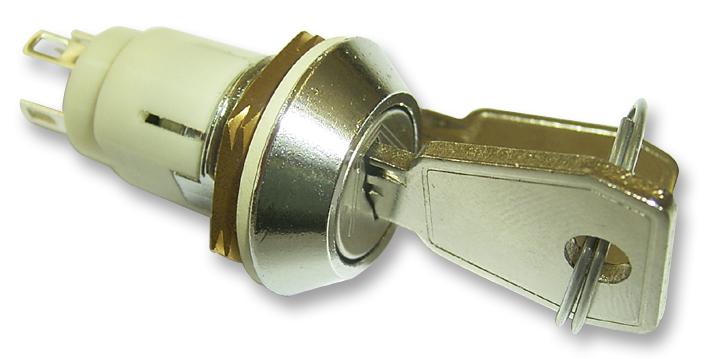

LORLIN WRL5FS2 Lock Switch
The WRL5FS2 is a sealed lock switch designed for industrial and marine applications, providing reliable switching with a contact rating of 1A at 115Vac and no mains isolation at 24Vde. Featuring a zinc alloy housing, brass contacts with silver plating, and a polyamide 6.6 body, it ensures durability in harsh environments. The switch supports over 10,000 cycles, operates within -20°C to +65°C, and is salt mist tested for corrosion resistance. It offers a compact design, easy front panel mounting, and optional earthing. Suitable for demanding control systems requiring secure, durable locking mechanisms.
LORLIN WRL5FS2 Lock Switch Specifications:
- Switch Rating: 1A @ 115Vac
- No Mains Isolation: 1A @ 24Vde
- Current Carrying Capacity: 5A non switching
- Life: >10,000 Cycles
- Operating Temperature: -20°C to +65°C
- Proof Voltage: 750 Vde
- Insulation Resistance: >999 MO at 500Vde
- Contact Resistance: <20 mQ
- Lock Type: 5 Disc
- Keys: 2 Brass - Ni Plated
- Contact Material: Brass CZ108 Ag Plated
- Moulding Material: Polyamide 6.6 UL94V0
- Lock Housing: Zinc Alloy Bright Cr Plated
- Environments: Suitable for Marine and exterior use
- Features: Compact, front-mount design, multiple key combinations, salt mist tested
Buy the Lorlin WRL5FS2 – Reliable Lock Switch for Industrial Applications
Purchase the Lorlin WRL5FS2 lock switch online today—engineered for durability and precise control in industrial and marine settings. This compact, sealed switch features zinc alloy housing and brass contacts with silver plating, ensuring reliable operation in harsh conditions. Supporting over 10,000 cycles and operating within -20°C to +65°C, it is salt mist tested for corrosion resistance. Its easy front mounting design allows quick installation, making it ideal for control panels requiring secure locking mechanisms for automation and machinery applications.
Get Lorlin WRL5FS2 today—built for precision and long-lasting durability in demanding industrial and marine environments.
Frequently Asked Questions
Where can I buy LORLIN WRL5FS2?
You can click on the BUY or RFQ button to purchase WRL5FS2 from an authorized LORLIN distributor.
How do I troubleshoot issues or seek technical support for part WRL5FS2?
You can download the WRL5FS2 datasheet or visit the LORLIN website for support.
Who is the manufacturer of WRL5FS2?
LORLIN
