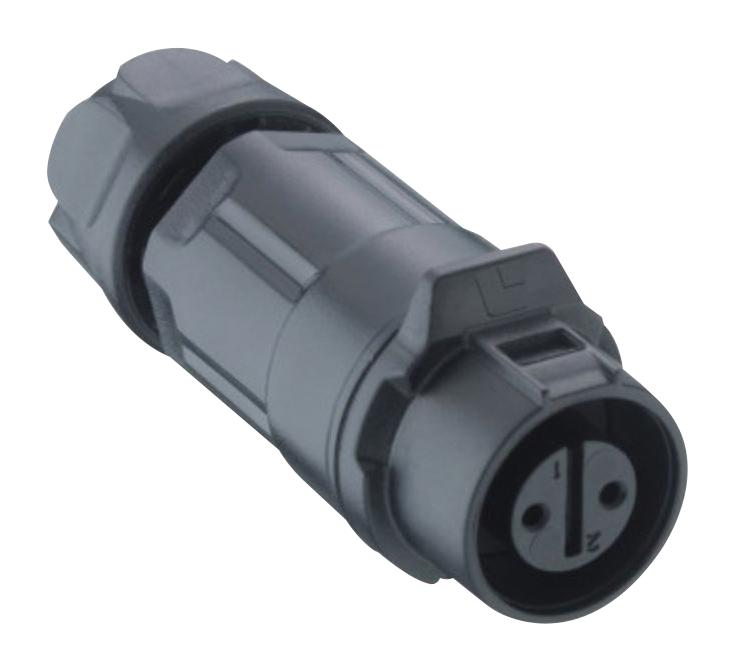

LUMBERG 026008 circular connector
The Lumberg E Quicklock circular connector offers reliable IP67 sealing, ideal for harsh environments. This straight socket features a durable plastic housing, solder terminals, and is rated for up to 1700 mating cycles. It operates within -40°C to +80°C, with a contact resistance of 10mΩ, rated current of 5A, and rated voltage of 25V. Suitable for cable diameters from 30-60mm, it ensures high performance with a long lifespan, making it perfect for industrial and outdoor applications requiring robust, water-resistant connections.
LUMBERG 026008 circular connector Specifications:
- Protection Class: IP67
- Temperature Range: -40°C to +80°C
- Material: Insulating body PBT, contact bush CuSn gold-plated, cap nut PBT
- Mating Cycles: 1700
- Insertion Force: 80N
- Withdrawal Force: 50N
- Cable Diameter: 30-60mm
- Rated Current: 5A (2-6 poles), 3A (7-8 poles)
- Rated Voltage: 25V
- Contact Resistance: 10mΩ
- Insulation Resistance: > 500MΩ
- Creepage Distance: 215mm
- Clearance: 205mm
- Approvals: cCE Wks
- Number of Poles: 2 to 8
- Number of Pieces per Pack: 15
- Material: PBT, V-0 UL94
- Environmental Condition: Suitable for outdoor, industrial environments
Buy the Lumberg 026008 – Reliable Circular Connectors for Industrial Applications
Discover the robust Lumberg circular connector designed for industrial use, featuring IP67 protection, solder terminals, and a durable plastic housing. Suitable for harsh outdoor conditions, it offers reliable connections with high mating cycle durability, rated for 1700 cycles. With a wide temperature range from -40°C to +80°C, rated for 5A and 25V, and cable compatibility between 30-60mm, this connector ensures consistent performance and long-term reliability in demanding environments. Order online today for dependable connectivity in your projects.
Get Lumberg 026008 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy LUMBERG 026008?
You can click on the BUY or RFQ button to purchase 026008 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 026008?
You can download the 026008 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 026008?
LUMBERG
