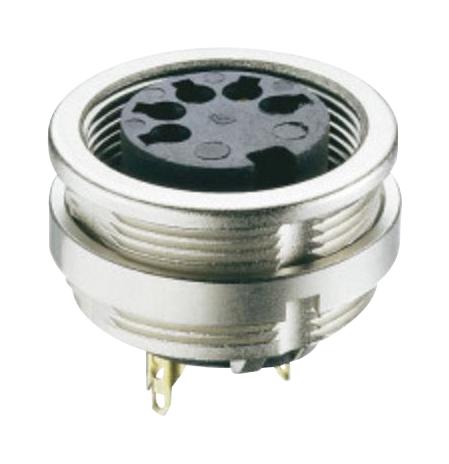

LUMBERG 0304051 Threaded Circular Connector
The LUMBERG 0304 05-1 is a robust circular connector designed for demanding industrial environments. It utilizes a threaded M16 joint for secure connections and offers IP67/IP68 protection against dust and water ingress. The connector features solder terminals and is intended for front mounting, making it suitable for applications requiring reliable and protected electrical connections. Constructed with PA GF, CuZn, and Zn diecast materials, it ensures durability and longevity. It is commonly used in machinery, automation systems, and outdoor equipment where environmental protection and secure connectivity are paramount.
LUMBERG 0304051 Threaded Circular Connector Specifications:
- Temperature Range: −40 °C/+85 °C
- Insulating Body Material: PA GF, V-0 (UL94)
- Contact Bush Material: CuZn, silver-plated and flash gold-plated (3-8 poles) / CuZn, pre-nickel and gold-plated (12-14 poles)
- Housing Material: Zn diecast, pre-copper and nickel-plated
- Ring Screw Material: CuZn, nickel-plated
- Seal Material: CR (flat), NBR (O-ring)
- Insertion Force/Contact: ≤ 5.0 N
- Withdrawal Force/Contact: ≥ 1.2 N (3-8 poles) / ≥ 0.9 N (12-14 poles)
- Tightening Torque Connector: 1-3 Nm
- Tightening Torque Nut: 1-3 Nm
- Protection Class: IP68
- Connectable Conductor Section: ≤ 0.75 mm² (AWG 20) (3-8 poles) / ≤ 0.25 mm² (AWG 24) (12-14 poles)
- Contact Resistance: ≤ 5 mΩ
- Rated Current: 5 A (Tamb 40 °C, 3-8 poles) / 3 A (Tamb 40 °C, 12-14 poles)
- Rated Voltage (Pollution Degree 1): 300 V (versions 03, 04, 05-1, 06, 07) / 100 V (versions 05, 07-1, 08, 08-1) / 160 V (versions 12, 14)
- Rated Voltage (Pollution Degree 2): 250 V (versions 03, 04) / 32 V (versions 05, 07-1, 08, 08-1) / 160 V (versions 05-1, 06, 07, 12, 14)
- Rated Impulse Voltage: 1500 V (versions 03, 04, 05-1, 06, 07, 12, 14) / 500 V (versions 05, 07-1, 08, 08-1)
- Material Group: II (IEC) / 1 (UL)
- Insulation Resistance: > 100 MΩ
- Packaging: Cardboard box
- Minimum Order Quantity: 100
