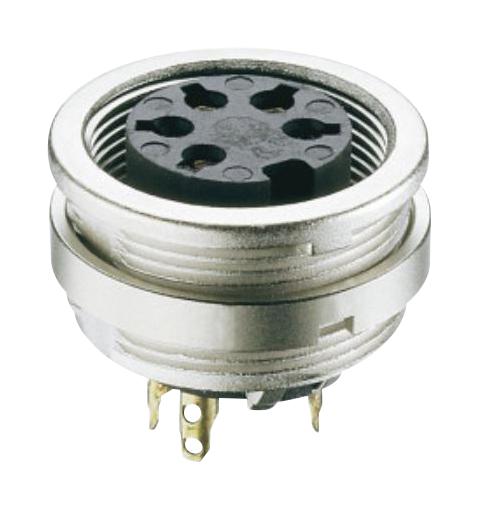

LUMBERG KFV120 Circular industrial connector
The KFV120 is a circular connector with threaded joint M16 according to IEC 61076-2-106, designed for robust and reliable connections with IP40/IP67/IP68 protection. It features solder terminals for front mounting, constructed with a zinc diecast housing, and an insulating body made from flame-retardant PA GF V-0. Suitable for industrial environments, it operates within a temperature range of -40°C to +85°C, with contact resistance below 5mΩ, rated current of 3A-5A depending on poles, and rated voltages up to 300V, ensuring safe and durable connections.
LUMBERG KFV120 Circular industrial connector Specifications:
- Material: Insulating body from PA GF V-0, zinc diecast housing
- Temperature Range: -40°C to +85°C
- Protection Class: IP40, IP67, IP68
- Contact Material: CuZn, silver-plated and flash gold or pre-nickel and gold-plated
- Insertion Force: 5.0N
- Withdrawal Force: 12N (3-8 poles), 0.9N (12 poles)
- Tightening Torque: Connector 3Nm, Nut 13Nm
- Rated Current: 3A (12 poles), 5A (3-8 poles)
- Rated Voltage: up to 300V depending on version
- Contact Resistance: ≤5mΩ
- Protection: Meets IEC DIN EN 60529, in locked condition
- Connectable Conductors: AWG 20 (3-8 poles), AWG 24 (12 poles)
Buy the Lumberg Series Circular Connectors: KFV120
Order the Lumberg KFV120 circular connector online now to ensure reliable, durable, and secure connections for your industrial projects. This high-quality M16 threaded connector is designed for front mounting with solder terminals, offering excellent protection ratings of IP40, IP67, and IP68. Its rugged zinc diecast housing and flame-retardant insulating body guarantee optimal performance across a temperature range of -40°C to +85°C. Whether for automation, control systems, or heavy-duty machinery, buy online today for fast delivery and professional support.
Get Lumberg KFV120 today—built for precision and long-lasting durability in industrial and outdoor applications.
Frequently Asked Questions
Where can I buy LUMBERG KFV120?
You can click on the BUY or RFQ button to purchase KFV120 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part KFV120?
You can download the KFV120 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of KFV120?
LUMBERG
