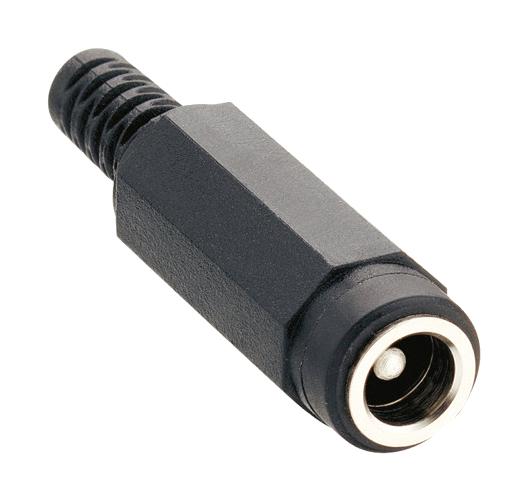

LUMBERG NEKJ210 Power Supply Connector
The NEKJ210 power supply connector is a straight cable socket with solder eyes and bend protection, designed for secure, reliable electrical connections in various industrial applications. Made from durable materials like PA V-2 and nickel-plated CuZn contacts, it withstands temperatures from -20°C to +70°C. The connector features a 57mm diameter opening, center pin of 2.0mm, and supports up to 5000 mating cycles. Rated for 2A and 24V DC, it ensures long-lasting performance with a contact resistance of 30mΩ and insulation resistance of 100MΩ, suitable for power distribution systems.
LUMBERG NEKJ210 Power Supply Connector Specifications:
- Temperature Range: -20°C to +70°C
- Housing Material: PE
- Insulating Body: PA V-2 (UL94)
- Contact Material: CuZn, nickel-plated
- Diameter of Opening: 57mm
- Center Pin Diameter: 2.0mm
- Mating Cycles: 5000
- Insertion Force: 4-20 N
- Withdrawal Force: 2-45 N
- Cable Diameter: 4mm
- Contact Resistance: 30mΩ
- Rated Current: 2A
- Rated Voltage: 24V DC
- Rated Impulse Voltage: 500V/60s
- Insulation Resistance: 100MΩ
- Packaging: Bulk, in cardboard box or plastic bag
Buy the Buy Lumberg Power Supply Connector Part Number NEKJ210 Online
Order the Lumberg NEKJ210 power supply connector online today for reliable and secure electrical connections in industrial power systems. Designed with a straight housing, solder eyes, and bend protection, it is built from durable materials like PE and nickel-plated CuZn. It supports up to 2A at 24V DC, with a temperature range of -20°C to +70°C, and can withstand 5000 mating cycles. Ideal for professionals needing a robust connector for demanding environments, ensuring long-term performance and safety.
Get Lumberg NEKJ210 power supply connector today—built for secure connections with bend protection and long-lasting durability.
Frequently Asked Questions
Where can I buy LUMBERG NEKJ210?
You can click on the BUY or RFQ button to purchase NEKJ210 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part NEKJ210?
You can download the NEKJ210 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of NEKJ210?
LUMBERG
