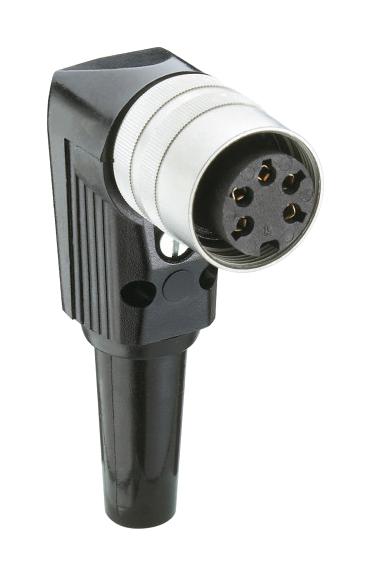

LUMBERG WKV81 circular connector
The WKV81 is a circular connector with a threaded joint, compliant with IEC 61076-2-106 standards. Designed for industrial use, it features a rugged insulating body made of PA GF, V-0 rated, with a zinc-plated steel sleeve and a copper-zinc contact bush, gold-plated for optimal conductivity. Suitable for temperatures from -40°C to +85°C, it supports a rated current of 3A at 40°C with a rated voltage of 100V. The connector offers easy assembly with a tightening torque of 3 Nm and strain relief for durable connections in various environmental conditions.
LUMBERG WKV81 circular connector Specifications:
- Material: Insulating body PA GF, V-0 according to UL94
- Contact bush CuZn, gold-plated
- Ground contact spring CuZn, pre-nickel, tin-plated
- Housing PC, HB according to UL94
- Temperature range: -40°C to +85°C
- Rated current: 3A at 40°C
- Rated voltage: 100V (versions 50, 71, 80, 81)
- Connectors supported: 3-8 poles, 12 poles versions available
- Insertion force/contact: 5.0 N
- Withdrawal force/contact: 1.9 N (3-8 poles), 1.2 N (12 poles)
- Tightening torque connector and nut: 3 Nm
- Cable diameter: 4-6mm
- Protection class: IP40/IP67/IP68
- Electrical contact resistance: 5 mΩ
- Overvoltage category: Cat II
- Temperature range: -40°C to +85°C
- Assembly: Pre-assembled, in a cardboard box
Buy the Lumberg Series WKV Circular Connector: WKV81
Order the Lumberg series WKV81 circular connector online today for high-quality, durable, and reliable industrial connections. Perfect for automation and control systems, it features a threaded joint, excellent environmental resistance, and a temperature range from -40°C to +85°C. Supports up to 3A at 100V, with IP40/IP67/IP68 ratings, ensuring versatile usage in harsh conditions. Pre-assembled for easy installation, this connector guarantees secure, long-lasting electrical connections across diverse industrial applications.
Buy Lumberg WKV81 now and experience unmatched reliability and industrial-grade performance with a rugged threaded connector design.
Frequently Asked Questions
Where can I buy LUMBERG WKV81?
You can click on the BUY or RFQ button to purchase WKV81 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part WKV81?
You can download the WKV81 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of WKV81?
LUMBERG
