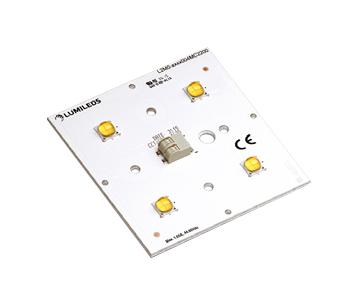

LUMILEDS L2M05070004MC2200 High Power LED Module
LUXEON XR-M modules are high-power LED arrays with 3, 4, or 5 LEDs on a thermally conductive substrate. Designed for versatile lighting applications like street lighting, high bays, and architectural displays, they deliver 3200-5300 lumens with an efficacy of 140 Im/W at 700mA and 85°C. The modules feature industry-standard optics and are available in multiple color temperatures and CRI options, with efficient heat dissipation via MCPCB. They come with a 5-year limited warranty, ideal for outdoor, industrial, and commercial lighting solutions.
LUMILEDS L2M05070004MC2200 High Power LED Module Specifications:
- Configuration: 3, 4, or 5 LEDs on MCPCB substrate
- Lumen Output: 3200-5300 lumens
- Efficacy: 140 Im/W at 700mA, T=85°C
- Color Temperature: 4000K, 5000K, 5700K
- CRI: 70
- Drive Current: 700mA (max DC 1050mA, pulsed 1200mA)
- Forward Voltage: 32.60-55.00 V depending on configuration
- Peak Pulsed Forward Current: 1200mA
- Junction Temperature: Max 135°C
- Operating Temperature: -40°C to 85°C
- Heat Sink Resistance: 0.96-1.60 K/W depending on part
- Durability: IP66 with appropriate optics and heat sink
- Warranty: 5 years limited
Buy the Lumileds L2M05070004MC2200 – Reliable LED Module for Industrial Applications
Discover the Lumileds High Power LED Module—an efficient, high-output lighting unit ideal for industrial, outdoor, and architectural applications. With up to 5300 lumens and excellent efficacy, this module offers versatile configurations, high durability, and easy system integration. Its robust design ensures optimal heat management, making it suitable for demanding environments. Whether for streetlights, high bays, or architectural fixtures, purchase online now to leverage fast delivery, warranty support, and the proven performance that helps your projects shine brightly with reliability and energy efficiency.
Buy Lumileds L2M05070004MC2200 now and experience unmatched reliability and performance in high-power LED lighting solutions.
Frequently Asked Questions
Where can I buy LUMILEDS L2M05070004MC2200?
You can click on the BUY or RFQ button to purchase L2M05070004MC2200 from an authorized LUMILEDS distributor.
How do I troubleshoot issues or seek technical support for part L2M05070004MC2200?
You can download the L2M05070004MC2200 datasheet or visit the LUMILEDS website for support.
Who is the manufacturer of L2M05070004MC2200?
LUMILEDS
