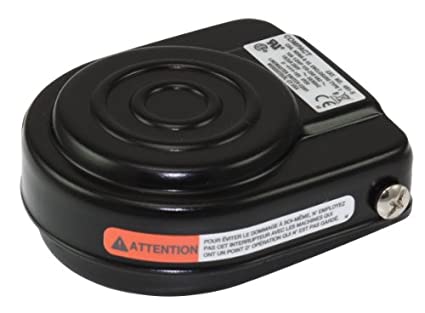

Linemaster Switch 491S Compact Foot Switch
The LINEMASTER Compact foot switch is designed for users seeking a reliable and compact foot-operated control solution. Constructed with a steel housing and a twin baseplate made of cast aluminum, this switch offers exceptional durability and stability. Commonly used in emergency vehicles and tattoo equipment, its small size allows for easy maneuverability. The twin model features a divider bar to prevent accidental simultaneous pedal activation. With mounting holes and available heavy-gauge steel guards, the Compact foot switch provides a secure and adaptable control option for a wide range of industrial and commercial applications.
Linemaster Switch 491S Compact Foot Switch Specifications:
- Housing: Steel, painted black
- Mounting Plate: Spot welded (491-SC36MP model)
- Baseplate: Cast aluminum
- Pedal Divider: Between pedals (twin model)
- Basepad: Non-skid
- Mounting Holes: 2
- Guards: Heavy gauge steel (available)
- Weight (Single): 8 oz
- Weight (Twin): 1.25 lbs
- Mounting Hole Diameter: 5.987 IN (152.07mm)
- Dimensions: 2.000 IN x 2.875 IN x 2.750 IN
- Agency Approvals: EN 60529
- Degree of Protection: IP20
- Circuit Form: Momentary SPDT C
- Electrical Ratings: 10 A 125-250 VAC
- Wiring: 6 ft. 16/3 cord (supplied with some models)
- Cord Plug: 3 prong series plug (supplied with some models)
