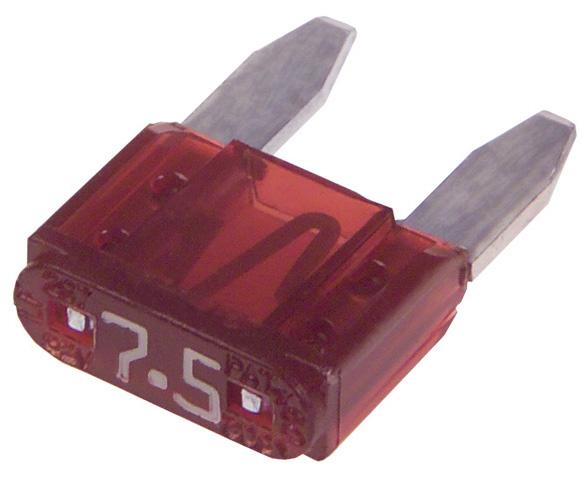

Littelfuse 0297075WXNV 32V Blade Fuse
The Littelfuse MINI Blade Fuse is rapidly becoming the new standard for vehicle circuit protection. Its miniature design allows for more circuits to be protected while utilizing less space, and its ability to cope with high temperatures in adverse environments makes the MINI Blade Fuse the recommended choice for protection. It meets SAE J2077 and ISO 8820 standards, ensuring reliable performance in automotive applications. The fuse is designed for use in vehicles and other applications requiring compact and robust circuit protection.
Littelfuse 0297075WXNV 32V Blade Fuse Specifications:
- Interrupting Rating: 1000A @ 32 VDC
- Voltage Rating: 32 VDC
- Operating Temperature Range: -40˚C to +125˚C
- Terminals: Ag plated
- Packaging: 3000
- Meets: SAE J2077 ISO 8820 UL 248
- Series: 0297xxx.WXNV
- Pack Size: 3000
- Time-Current Characteristics: See datasheet
- Housing Color: Kennfarbe
- Typ. Voltage Drop: mV
- Cold Resistance: m Ω
- I [2] t: A²s
